16-Channel 24VAC 8amp Power Supply

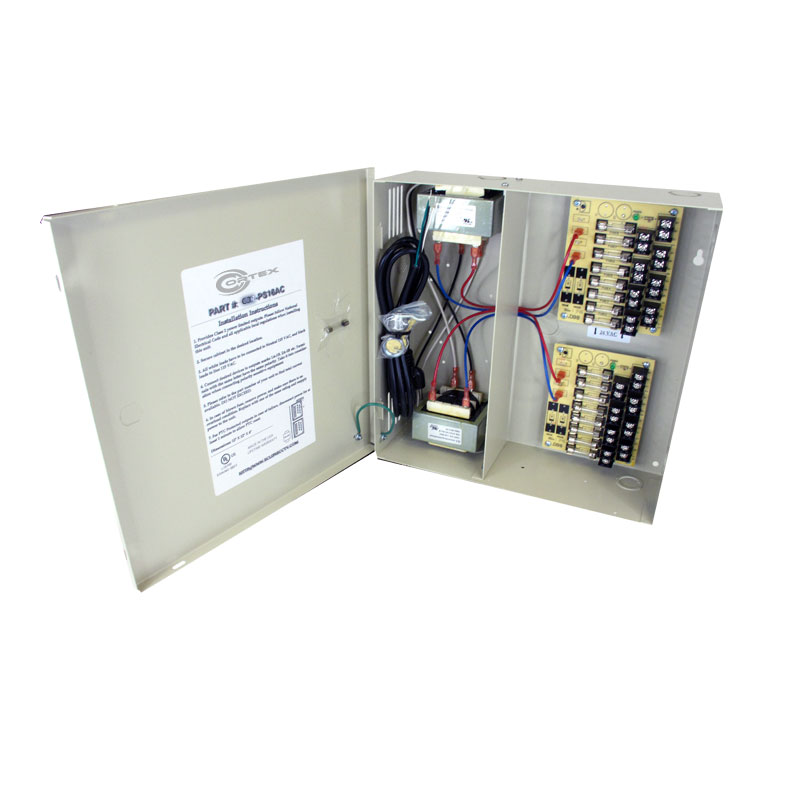

This UL listed wall mount power supply is housed in a metal cabinet. It has sixteen (16) individually fused outputs and status LEDs. The metal cabinet can be locked and has marked knockouts for customization.

24VAC Security Camera Power

This 16-channel DC power supply plugs into a standard North American 110/120VAC wall outlet. It is designed for permanent installation. Maximum power (current) draw for attached devices is 500 mA / channel. Maximum power output, measured as a sum of all 16 channels, is 8 amps.

Use this power supply for CCTV cameras, heaters, and other video accessories. This 24VAC power supply has 16 PTC protected outputs and is designed for permanent installation. These regulated outputs are PTC protected with surge suppression. Power output fuses are rated @ 500 mA for each channel. This unit will maintains your camera synchronization. It has a strong metal cabinet with knockouts, and can be secured with a barrel-style lock ( included). If you're looking for a wall mounted power supply box for your security camera system , look no further.

High Amp Version Available

• Output Voltage:24VAC
• Sixteen (16) 24VAC outputs
• 8 amps max. continuous output.
• Each output individually fused
• Output Fuses:500 mA rated, 8 amps total
• LED indicators
• Requires 110/120VAC source
• Dimensions: 304mm x 100mm x 304mm (12" x 4" x 12")
