AHD | TVI | CVI | 2MP | 1080p HD Camera

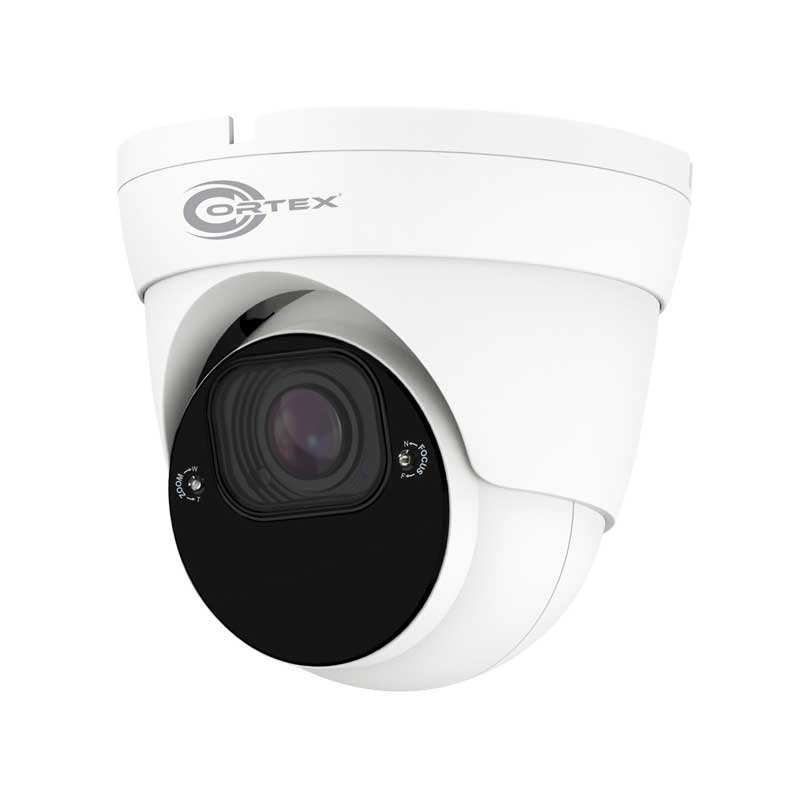

This AHD Turret model from Cortex is perfect for everyday use in commercial and industrial applications that require rugged weatherproof CCTV camera that can output the next generation of 1080p resolutions.
Main Features
- Image Sensor: 1/2.9” CMOS
- Resolution: 2MP 1920(H)×1080(V)
- Minimum Illumination: 2MP 1920(H)×1080(V)
- Signal System: NTSC
- Shutter Time: 1/15 s to 1/50,000 s
- True Day & Night: Mechanical IR cut filter
- Synchronization: Internal synchronization
- IR Cut Filter: YES 850nm
- DWDR: YES
- IR LED: Qty 40 SMD IR
- Night Vision: (m) (feet) 45 m 147 feet
- Lens: (mm) 2.8-12mm
- Video Output Termination: 1-channel BNC video output
- Switch Button: AHD / TVI / CVI / CVBS
- AGC Adjustment: (Yes) OSD
- White Balance: Auto/Manual
- Backlight Compensation: Yes
- Signal to Noise Ratio: 40dB
- OSD :Support
- IP Rating :IP66 Outdoor
- Power Supply: 12V
- Cortex Security
From Coax HD to digital broadcast quality
From IP systems to industrial network video
Cortex® Security AI provides you with the best!
Providing unique technology and support to our partners is our main focus. Cortex® Security'S knowledgeable team members are trained on popular solutions that fit your surveillance requirements and needs.
- Camera Chipset: DSP with OSD
- Image Sensor: 1/2.9” CMOS
- Resolution: 2MP 1920(H)×1080(V)
- Minimum Illumination: 0.05 lux @ F1.2(AGC ON),
0Lux with IR ON
- Signal System: NTSC
- Frame Rate : AHD / TVI / CVI: NTSC @ 30fps
CVBS: 960H
- Shutter Time: 1/15 s to 1/50,000 s
- True Day & Night: Mechanical IR cut filter
- Synchronization: Internal synchronization
- IR Cut Filter: YES 850nm
- DWDR: YES
- Horizontal Field of View (degrees): H.FOV:104.2°(W)—28.78°(T)
(T) (2.8-12)
- IR LED: Qty 40 SMD IR
- Night Vision: (m) (feet) 45 m 147 feet
- Lens: (mm) 2.8-12mm
- Video Output Termination: 1-channel BNC video output
- Switch Button: AHD / TVI / CVI / CVBS
- AGC Adjustment: (Yes) OSD
- Day / Night Mode: EXT / Auto /Color / BW
(Black and White)
- White Balance: Auto/Manual
- Backlight Compensation: Yes
- Signal to Noise Ratio: 40dB
- OSD :Support
- IP Rating :IP66 Outdoor
- Power Supply: 12V
- Power Consumption: MAX 3W
- Gain Control : Yes
- Communication: Up the coax, Protocol
- Storage Temperature: -30~+60°C (-22~+140°F)
- Operating Temperature: -30~+55°C (-22~+131°F)
- Dimensions: Ø128.X 135mm (Ø5X 5.29 inches)
- Weight: Approximately 1.04 lbs (474g )
