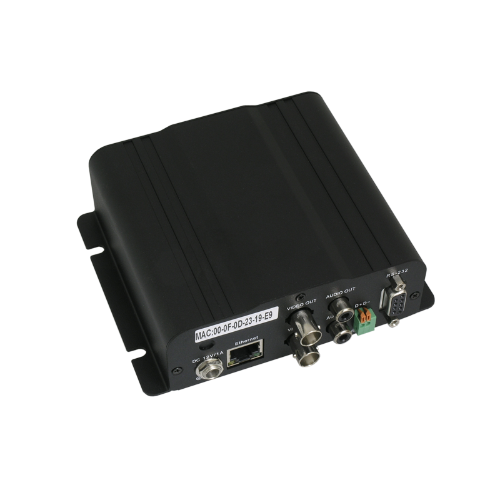

Convert the output of your best analog (standard technology) CCTV camera to an internet compatible stream of data and view it on the 'net or send it to a network video recorder or other device for storage. No need to throw out expensive cameras when upgrading to IP camera technology. Just convert it!
Works great with our NEXXA and REXION series NVRs.
- One (1) analog camera input
- One (1) microphone input
- Looped video output and looped audio output
- Micro SD card slot
- 16M flash memory
- Sensor connections
- Multi-viewer permissions control
- Power: 12VDC (not included)
- Manual included
- One year warranty
- Metal cabinet, designed for permanent installation.
Technology | Cable-loss Compensation | Noise | Suge/Lighting Protection | Ground Loop Isolation | Cost of Media | Cost of TX/RX |
Coax | NO | NO | NO | NO | High | None |
Fiber Optics | YES | YES | YES | YES | Very High | High |
PV-link UTP | YES | YES | YES | YES | Low | Low |
Product main specifications Configuration Table of Passive to Active Transmission Distance
Transmitter | Number of Cameras | Max Transmission Distance | Transmitter | Receiver |
Passive To Passive | 1 | 400m | PV-203A/B,PV-206A/B,PV-207,PV-201MA/C | PV-203A/B,PV-206A/B,PV-207,PV-201MA/C |
1-4 | 400m | PV-203A/B,PV-206A/B,PV-207,PV-201MA/C | PV-401R,PV-1004 |
1-16 | 400m | PV-203A/B,PV-206A/B,PV-207,PV-201MA/C | PV-1601R |
Passive To Active | 1 | 1200m | PV-203A/B,PV-206A/B,PV-207,PV-201MA/C | PV-2004R-DSA,PV-2003R-DSA |
1-4 | 1200m | PV-203A/B,PV-206A/B,PV-207,PV-201MA/C | PV-2004R-DSA |
1-8 | 1000m | PV-203A/B,PV-206A/B,PV-207,PV-201MA/C | PV-2208RQ-DSA |
1-16 | 1000m | PV-203A/B,PV-206A/B,PV-207,PV-201MA/C | PV-2216RQ-DSA |
Active To Active | 1 | 2000m | PV-301T,PV-351T | PV-2001R-DSA, PV-2003R-DSA |
1-4 | 2000m | PV-301T,PV-351T | PV-2004R-DSA |
1-8 | 1000m | PV-301T,PV-351T | PV-2208RQ-DSA |
1-16 | 1000m | PV-301T,PV-351T | PV-2216RQ-DSA |
Configuration Table of PVD Hub to Active Video Transmission Distance
Number of Cameras | Max Transmission Distance | Transmitter | HUB Transmitter(Midspan) | Receiver |
1 | 400m | PV-208A/B,PV-208C/D | | PV-208A/B |
1 | 400m | PV-208A/B,PV-208C/D | | PV-208C/D |
1-4 | 400m | PV-208A/B,PV-208C/D | PV-2304PVD | PV-401R,PV-1004 |
1-16 | 400m | PV-208A/B,PV-208C/D | PV-2304PVD(4set) | PV-1601R |
1-4 | 400m | PV-208A/B,PV-208C/D,PV-3001P-AC-DC | PV-2304PH-AC(1set) | PV-2004R-DSA |
1-16 | 400m | PV-208A/B,PV-208C/D,PV-3001P-AC-DC | PV-2304PH-AC(4set)or PV-2308PH-AC(2set) | PV-2216RQ-DSA |
1-16 | 400m | PV-208A/B,PV-208C/D,PV-3001P-AC-DC | PV-2304PH-AC(4set)orPV-2308PH-AC(2set) | PV-2216RQ-DSA |
Peferenced Table for PVD Product Power Transmission Distance
Table 1:PV-3001P-AC-DC at the DC12V camera
| AC24V | AC28V | AC24V | AC28V | AC24V | AC28V | AC24V | AC28V |
Camera Current | 100mA | 100mA | 250mA | 250mA | 450mA | 450mA | 600mA | 600mA |
24AWG Maximum Transmission Distance | 1km | 1km | 375m | 550m | 210m | 305m | 150m | 220m |
Table 2:PV-208A/B/C/D at the AC24V camera
| AC24V | AC28V | AC24V | AC28V | AC24V | AC28V | AC24V | AC28V |
Camera Current | 100mA | 100mA | 250mA | 250mA | 450mA | 450mA | 600mA | 600mA |
Camera Minimum Operating Voltage | AC24V±10% |
24AWG Maximum Transmission Distance | 237m | 700m | 120m | 330m | 80m | 240m | 52m | 125m |
Table 3:PV-208A/B/C/D at the DC12V camera
Power Supply | AC12V | AC12V | AC12V |
Camera Current | 100mA | 200mA | 30mA |
Camera Minimum Operating Voltage | DC9V |
24AWG Maximum Transmission Distance | 238m | 120m | 90m |
