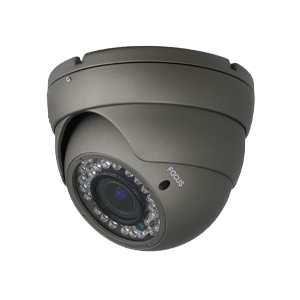

Advanced Low Light SDI Dome Security with Smart Noise Reduction
Designed with high quality in mind, the HD39 is perfect for industrial applications where image adjusting is vital. Dual scan true wide dynamic range allows for the best picture in a number of bright lighting condition. The 1/3" Panasonic® Sensor is standard on the HD-39. The high power infraredsystem is crucial for capturing images on a pitch black night. A high-end chipset makes all the difference, don’t be fooled by cheap look-alikes.
The image pickup at the front end of this camera uses a 1/2.8" Panasonic® sensor, larger than a 1/3" sensor, brighter, with more data/light collecting suface. This means a better video picture, more accurate color reproduction, and better contrast, making tasks like facial recognition much easier.
True High Definition 1920 x 1080p Picture
Not only do you get true high definition (progressive scan) video, this camera comes with an OSD menu that lets you fine tune the camera. You can set up digital wide dynamic range (DWDR), Sens-Up, 2D & 3D digital noise reduction, backlight compensation (BLC) and more.
Varifocal Lens and IR Subsystem
This camera can be used inside or out. The front end contains an infrared LED array, aided by a mechanical IR filter, for zero-light operation. A 2.8-10mm varifocal lens lets the user adjust near/far for better focus and adjusting the field of view.
Easy Upgrade To Hi Definition Surveillance
For current owners of CCTV surveillance networks, the upgrade path from a standard CCTV camera network to an IP based network can represent daunting challenges. For these clients, SDI technology offers an easy to use alternative. The biggest advantage, when installed networks are concerned, is the plug-and-lay aspect of SDI. They use common coaxial cables, so there is no need to lay new cables if you are replacing a current. They don't use IP connections, so there is no need to call in an network specialist to set up your DVR or remote viewing equipment.
SDI - Serial Data Interface
Sometimes called Serial Digital Interface, the SDI format provides an easy to implement method of connecting advanced CCTV cameras to existing and new security networks. They use coaxial cable, so if you already have a network that uses coaxial cable you don't have to replace them. This means savings, especially on long cable runs. No new cable required, no new installers (labor charge). SDI security cameras connect directly to coax.
Main Features
- 1/3" Panasonic® 2.1 Mega CMOS
- Effective Pixels 1944(H) x 1092 (V)
- SDI High Definition Output
- IR range 82 - 98 feet /25-30 meters /
- Lens 2.8 mm - 12mm
- 0.2 LUX (Color/Day) 0.01 LUX (B/W)
- (OSD Control Menu)
- White Balance AWB/ ATW / PUSH / MANUAL
- Back Light Control OFF / ON
- IR LED 42IR
- Effective Pixels 1944(H) x 1092 (V)
- Electronic Shutter AUTO/ MANUAL /FLK)
- 3D-DNR OFF / ON (LOW / MIDDLE / HIGH)
- Power: 12VDC
