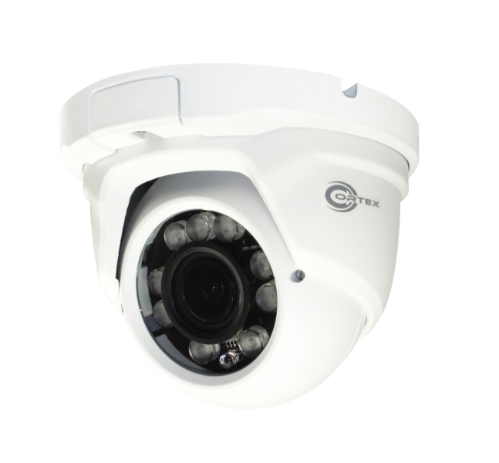

EX-SDI Security Camera Turret Dome with Varifocal Lens and Dragonfire® IR
Hybrid SDI Camera with Serial Digital Interface
EX-SDI is a long range DIGITAL format that has a rated range of over 1000 feet (300~500m) on Coax RG-59 or RG-6 cable. This visually lossless quality brings exceptional performance to video surveillance at full frame rates. Unlike analog HD (AHD, TVI) cameras which must accept modulated signal noise and interference, The EX-SDI DIGITAL signal eliminates interference from common outside forces and renders rich color saturation. Long Range illumination with Dragonfire® Matrix IR.
You made the analog version of this camera a customer favorite, you can do the same with the 1080p SDI digital high definition. The great qualities that you've grown to love
now come in EX-SDI and HD-SDI. Retrofit any legacy analog system with 6 times the picture quality the same coax cable.
Best Coax HD technology: The only DIGITAL Coax technology.
Best Interference avoidance: Digital signal with no hum bars or floresent light waves
Supports WDR, 3D-DNR
Advanced night time performance with a lip-less housing design that prevents bounce and reflection of IR. The large gap front brace provides maximum flexibility during view angle adjustment while reducing infrared glare common in IR models. These unique technologies combined with a finely tuned wide dynamic range and dynamic noise reduction system generate stunning visual perfomance that far exceeds expectations!
EX-SDI is the only coax format slated to produce full-frame real-time at 4K UHD quality in future models. EX-SDI Cameras for UHD CCTV will available for Summer of 2018.

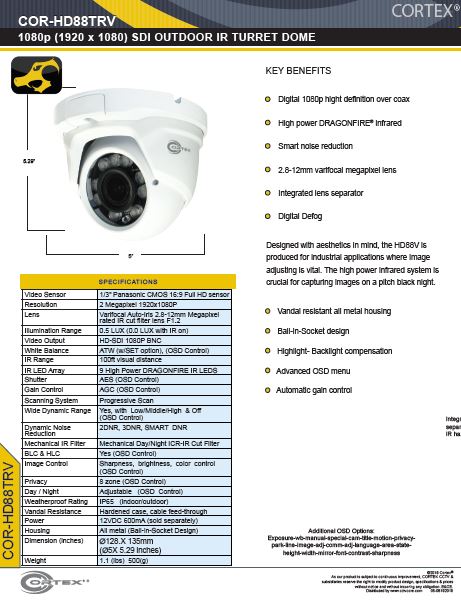

Designed with aesthetics in mind, the HD88TRV is produced for industrial applications where image adjusting is vital. The high power infrared system is crucial for capturing images on a pitch black night.
Main Features
- 1/3" Panasonic® 2.1Mega CMOS
- Long range EX-SDI True digital signal
- Selectable: EX-SDI, HD-SDI, TVI, Legacy 960h
- Lens 2.8 mm~12mm HD Varifocal
- Effective Pixels 1944(H) x 1092 (V)
- 9 LED Dragonfire® Matrix IR
- Large retainer gap and glare reduction
- Over-sized front glass window with no lip
- TV System PAL / NTSC
- Minimum Illumination 0.2 LUX (Color/Day) 0.01 LUX (B/W)
- White Balance: AWB / ATW / PUSH / MANUAL
- Sens-Up OFF / ON
- Electronic Shutter AUTO/ MANUAL /FLK
- OSD Menu on wire harness
- EX-SDI: Over 1000 feet on Coax or Siamese
- Heavy duty base (anti-warp)
- Smooth finish and polished threading
- Slender lens separator
- QC6® tested and approved
- Power: 12 VDC
- Hybrid Camera Model
- EX-SDI Cameras
