H.265 / H.264 | 2MP | Network IP

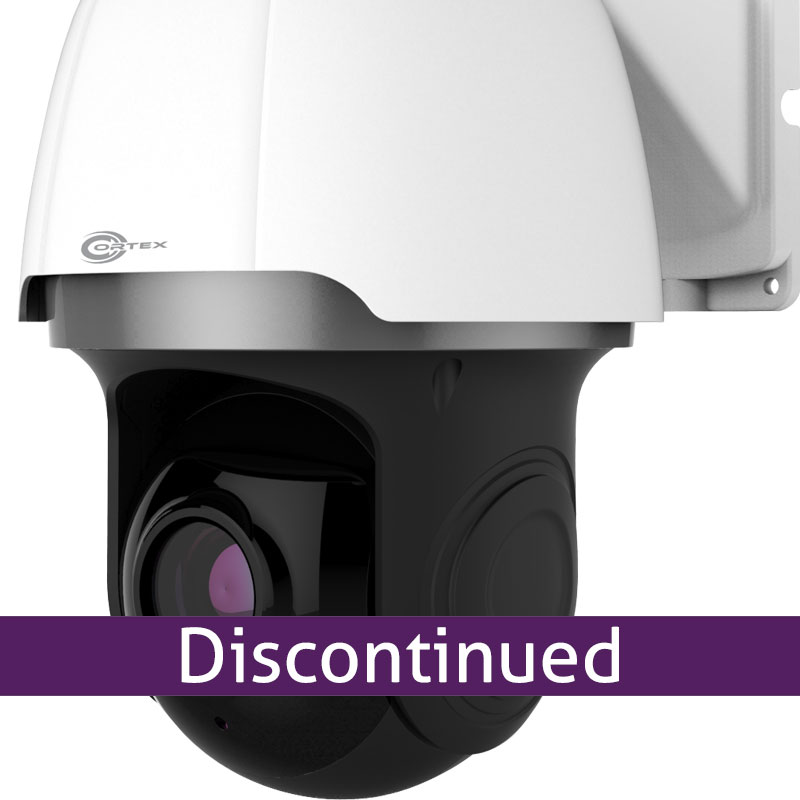

2MP IP Outdoor PTZ Network Camera with 72~ 3.8 degree (Wide~Tele) amazing night time shots in full color are possible. This Medallion IP PTZ Security Camera has with 22X Optical Zoom with 1920(H) × 1080(V) resolution.
Main Features
- Premium Components
- 2MP 1920(H) × 1080(V) Resolution
- 1/2.8” Progressive Scan CMOS
- 22X Optical Zoom
- 492 feet (150m) IR Range
- H.265/H.264 Video Compression
- 360°endless pan range
- Multiple adjustable Video Streaming
- 255 presets
- IP66 Waterproof Metal Housing Casing
- CAMERA*
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Effective Pixels: 1920x1080
- Signal System: PAL / NTSC
- Lens: 22x Optical Zoom plus Digital
- Focal Length : F1.6 ~ F3.0 , 4.7mm -104mm
- Angle of View: 72~ 3.8 degree (Wide~Tele)
- Minimum Illumination: AGC On: Color: 0.5 lux, B/W : 0.05 lux, 0 lux with IR
- White Balance: Auto / Manual / Indoor
- AGC : Auto / Manual
- BLC: ON / OFF
- Smart defog: Support
- WDR: 120 dB
- Shutter Time: 1/5 - 1/20000
- Day / Night: IR cut filter with auto switch
- VIDEO*
- Compression: Main Stream H.265 / H.264
- Video Output: 1 Output / CVBS (BNC Type)
- Transmision : H.265 / H.264 Triple Streaming
- Resolution : 30fps @ 1920*1080 ~ 30fps @ 320*240
- AUDIO*
- Input : 1 Line-in
- Output : 1 Line-out
- ALARM*
- Input: 1 inputs
- Output: 1 output
- NETWORK*
- Ethernet:10/100Mbps ethernet interface
- Protocols: TCP/IP,HTTP,DHCP,DNS,DDNS,RTP / RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- No. of Simultaneous Users: 5 users
- RS485 interface: Control by Joystick controller (Only used PTZ function)
- INFRARED*
- IR irradiation distance: 492 feet (150M)
- IR Diming function: Adjustable by zoom
- PAN / TILT*
- Pan Range: 360°endless
- Tilt Range: -10°~95° (Auto Flip )
- Pan Speed: 0.1~300° / sec
- Tilt Speed: 0.1~100° / sec
- Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
- Preset : 255
- Preset Speed: Max.300°/sec
- Tour: 4 Tours/ 8 preset each
- Pattern: 4 Patterns
- Scan : 1 Scans
- Home position : Preset / Tour / Scan / Pattern
- GENERAL*
- Water Proof : IP66
- Working Temperature: -40°C~+70°C / 40°F~+158°C
- Working Humidity: <90% (Outdoor)
- Dimensions : 351.8 x 206.44 mm 13.8 ix 8.3 inches
- Weight : Approx. 4.4 pounds 2kg
- Power Supply : AC 24V
