H.265 / H.264 | 5MP | Network IP

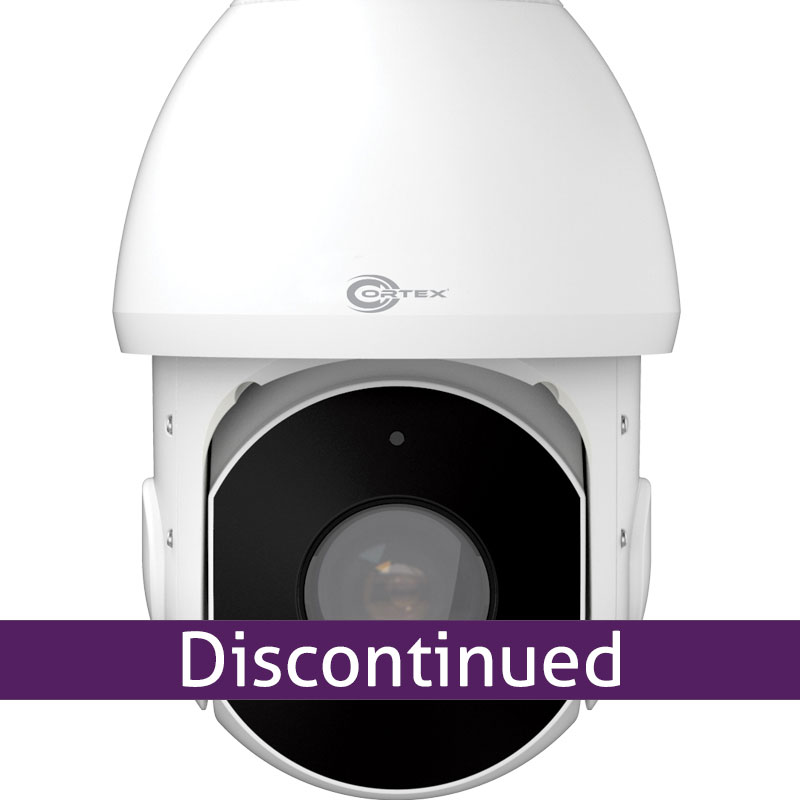

The COR-IP5SPD23A camera is equipped with advanced features and technologies to provide high-quality video surveillance in various environments.
This PTZ is designed to withstand harsh weather conditions with its IP66-rated weather-resistant housing. This ensures reliable performance and durability in outdoor environments.
Power can be supplied to the camera through PoE (Power over Ethernet) compliant with the 802.3at standard or AC 24V/3A±10% power supply.
The camera incorporates Smart IR II technology, with an impressive IR distance of up to 650 feet.
The COR-IP5SPD23A offers 300 preset positions, allowing users to easily control the lens position via a mouse and monitor specific areas of interest. Additionally, keyboard control is supported, providing shortcut keys for PTZ control via a keyboard for convenience.
Main Features
- Premium Components
- 5MP 2592(H) × 1944(V) Resolution
- 1/2.8” Image Sensor
- 23X Optical Zoom
- 650 feet (198 meters) IR Range
- H.265/H.264 Video Compression
- 360°endless pan range
- Multiple adjustable Video Streaming
- 255 presets
- IP66 Waterproof Metal Housing Casing
- CAMERA*
- Image Sensor: 1/2.8”
- Min. Illumination: Color: 0.008Lux@F1.5 , B/W: 0Lux with IR on
- WDR: 120dB Super WDR
- Shutter time: 1/100000s - 1s
- Digital Zoom: 16X
- Shutter time: 1/100000s - 1s
- Day / Night Mode: Day / Night / Auto / Customize / Schedule
- SNR: >55dB
- LENS*
- Focal Length: 5 - 117mm , 23X Optical Zoom
- Zoom Speed: Approx 6s (Wide-Tele)
- Field of View: H55° - H3° / D68° - D4° / V42° - V2°
- Focus Control: Auto / Semi-Auto / Manual
- Minimum Working Distance: 3.9 - 59inches (100 / 1500mm)
- Aperture: F1.5 - F3.5
- Iris Control: Auto
- PTZ*
- Pan Range: 360°endless / Pan Manual Speed: 0.1° - 250°/s, Pan Preset Speed: 250°/s
- Tilt Range: -5° - 90°(Auto Flip) / Tilt Manual Speed: 0.1° - 160°/s, Tilt Preset Speed: 160°/s
- Proportional Zoom: Support
- Preset Quantity: 300
- Patrol: 8 Patrols, up to 48 presets each patrol
- Pattern: 4 Patterns
- Auto Tracking: Support
- Power Off Memory: Support
- Other Function: Auto Scan, Auto Home, Preset Freezing, 3D positioning, PTZ Limits, Initial Position
- INFRARED*
- IR Distance: Up to 650 feet
- IR Angle: Auto / Manual
- VIDEO*
- Max. Image Resolution: 2592x1944
- Frame Rate:
- Mainstream:60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576)50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
- Substeam: 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
- Third Stream: 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
- Video Compression: H.265+/ H.265(HEVC) / H.264+/ H.264/ MJPEG
- Video Bit Rate: 16Kbps~16Mbps(CBR/VBR Adjustable)
- Privacy Masking: Up to 28 areas (24 mask areas and 4 mosaic areas)
- ROI: Up to 8 areas
- Image Setting: Brightness / Contrast / Saturation / Sharpness
- INTERFACE*
- Ethernet: 1*RJ45 10M/100M Ethernet Port
- Audio I/O: 1/1
- Alarm I/O: 4/2
- RS485: Support
- NETWORK*
- Network Storage:NAS(Support NFS, SMB/CIFS), ANR
- Protocols:IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP,Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
- AUDIO*
- Audio Compression: G.711/AAC/G.722/G.726
- Audio Sampling Rate: 8/16/32/44.1/48KHz
- Audio Bit Rate: 16 - 256kbps
- Two-way Audio: Support
- INTELLIGENT ANALTICS*
- Video Analysis:Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,Line Crossing, Loitering, Object Left, Object Removed
- Face Detection:Detect and capture faces, get real-time snapshots
- People Counting & Report : Count the number of people entering or exiting,
up to 4 detection areas for regional people counting
- Two-way Audio: Support
- SYSTEM*
- Storage: Support microSD/SDHC/SDXC Card Local Storage, up to 256G,
- Advanced Function:BLC, HLC, 2D DNR, 3D DNR, Defog, AWB,EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
- SIP/VoIP Support : Yes, Voice & Video-over-IP
- Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc
- Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc
- System Compatibility: Open compatibility
- GENERAL*
- Working Condition: Temperature: -40℃ - 60℃ / Humidity: 0 - 90% (Non-condensing)
- Power Supply: PoE (802.3at) / AC 24V/3A±10%
- Power Consumption: 12W MAX / 25W MAX (With IR on)
- Weather Proof/Housing: Up to IP66-rated for Weather-resistant Performance
- Heater: Support
- Wiper(Optional): N/A
- Surge Protection: 6KV
- Dimensions/Weight: 8 inches (205mm) X 12inches (308mm) /8.81 lbs (4Kg)
