H.265 / H.264 | 5MP | Network IP

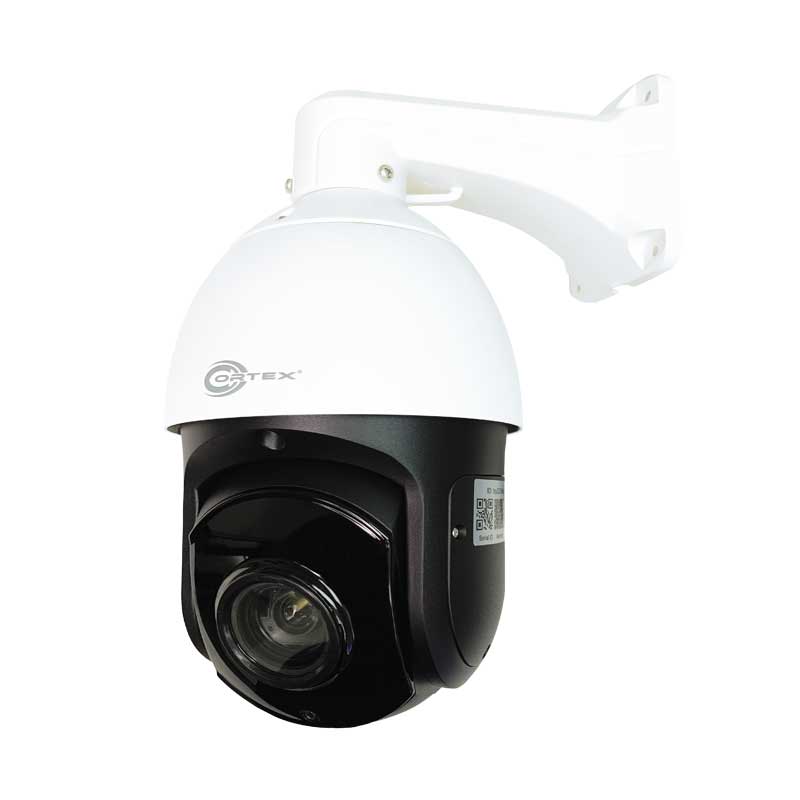

5MP IP Outdoor PTZ Network Camera with amazing night time shots in full color. This Medallion IP PTZ Security Camera has with 30X Optical Zoom with 2592(H) × 1944(V) resolution.
Main Features
- Premium Components
- 5MP 2592(H) × 1944(V) Resolution
- 1/2.8” 5.0M Pixel Sony® IMX335 CMOS
- 30X Optical Zoom
- 984 feet (300 meters) IR Range
- H.265/H.264 Video Compression
- 360°endless pan range
- Multiple adjustable Video Streaming
- 255 presets
- IP66 Waterproof Metal Housing Casing
- CAMERA*
- Image Sensor: 1/2.8” 5.0M Pixel Sony® IMX335 CMOS
- Min. Illumination: Color; 0.02Lux@(F1.6, AGC ON) ; 0.01Lux@(F1.6, AGC ON)
- Zoom: 30X , f=4.7mm~94mm, D/N( ICR-Cut) ,F1.6~F3.0
- Day / Night: Day / Night / External control (IR Cut Filter)
- SNR: ≥50dB (AGC OFF)
- WDR Digital WDR: ,≥87.5dB
- White balance: Auto / Manual / ATW / Indoor/ Outdoor
Daylight lamp / Sodium lamp
- AGC: Auto / Manual
- DNR: DNR,3DNR
- Shutter speed: 1/2 - 1/20,000s
- VIDEO*
- Video Compression: H.265 Main Profile / H.264 Main Profile / M-JPEG
- Streams: Triple streams
- Bitrate: CBR / VBR, bitrate:32Kbps~10Mbps
- AUDIO*
- Audio Compression: G711, PCM
- Audio I/O: 1 input (Linear level, Resistance: 1000 Ohm); 1 output (Linear level, Resistance: 600 Ohm);
- ALARM*
- Motion detect: Support
- Privacy Zone Masking: Support
- NETWORK*
- P2P: Android, IOS
- Compatibility: Open compatibility ® 2.4
- Frame Rate:
- Mainstream: 2592x1944/15fps 2592x1520 / 25fps
- Substeam: 480*640, 1-25(30)fps; 480 *360 1-25(30fps, 352*288, 1-25(30)fps; 176*144, 1-25(30)fps
- MJPEG: 1920*1080, 1280*720, Close
- Protocols:TCP/IP/ HTTP/NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
- INFRARED*
- Luminary: Array Φ20 8pcs
- Night vision distance: 984(feet) 300 (meters)
- Lamp control: Auto, Manual, by Zoom
- DOME FEATURES*
- CPU Type: 32 bit ARM CPU
- Address: 0~255 (soft address and hard address)
- Pan Range: 360° continued rotation
- Tilt Range: 0~90°(Auto Flip)
- Manual pan speed: 0.01~60º/S
- Manual tilt speed: 0.01~60º/S
- Preset speed 200°/S
- Actual preset Accuracy: ±0.10°
- Preset points: 255
- Other function: 5Tour, Intelligent Three dimensional Scan, 1Pattern group ,Operation recall, Manual continued Auto Scan
- Intelligent power off real time memory: Automatic save functions setting ,automatic wake up tour function
- GENERAL*
- Power: DC12V±10%; 5A
- Working Temperature: External -35°C ~ + 55°C (-31~+131°F)
- Working Humidity: 0%~90% (Non condensing))
- Consumption: < 50W
- Dimensions: 370 x 227 mm (14.5 ix 8.9 inches)
