H.265 / H264 | 5MP | Network IP | PoE | Thermal | ColorMAX | Advanced AI

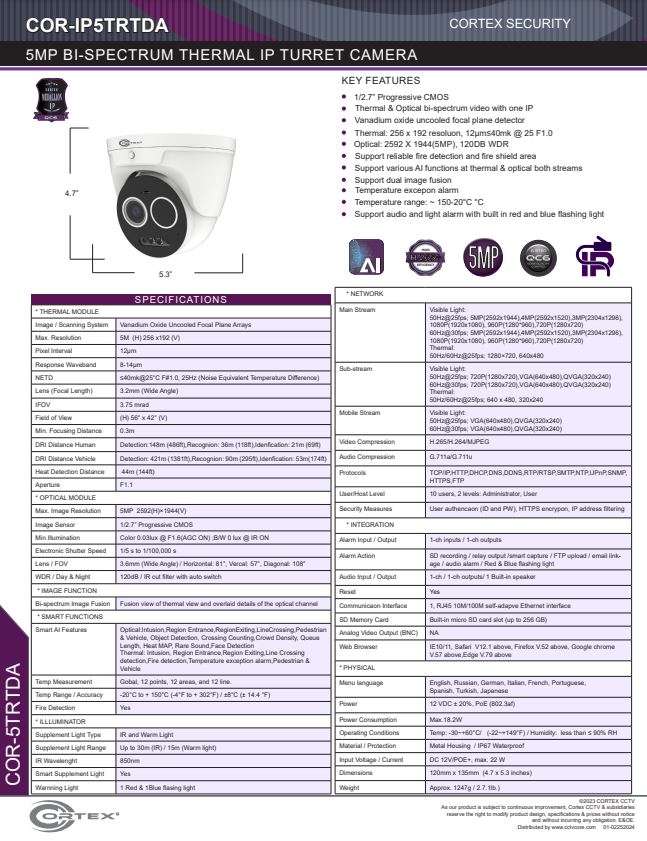

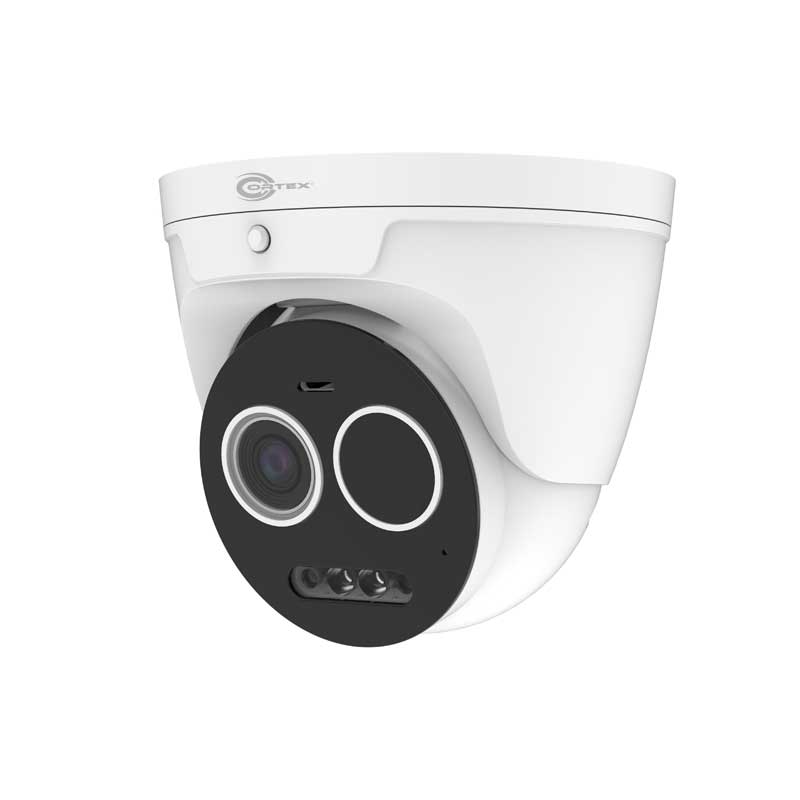

5MP Cortex Medallion 5MP Dual Module IP Visible Light with Built-in Thermal Camera. Thermal & Optical bi-spectrum video with one IP camera. 1 Premium 5MP lens optical resolution: 2592 x 1944(5MP), 120dB with true WDR and 1 Thermal: 256 x 192 resolution, 12μm ≤ 40 mk @ 25℃ F 1.0. Use thermal detection in conjunction with Advanced AI for reliable notifications. The Dual lighting ColorMAX CMOS sensor that is included is capable of producing stunning nighttime video in full color. Dynamic noise reduction takes care of the few artifacts generated by application and gain.
Thermal cameras capture images based solely on the heat radiating from organic and inorganic objects. Thermal imaging technology doesn't depend on what’s visible to the human eye, these cameras aren’t sensitive to challenging light conditions such as total darkness, shadows, and glaring light. This also means that it’s possible to see through smoke and light fog. Thermal cameras also let you remotely monitor temperatures without being on site. Set a temperature threshold and you will get notifications if your equipment is getting close to overheating.
NDAA compliant - FCC approved
Main Features
- Vanadium oxide uncooled focal plane detector
- Support various AI functions at thermal & optical both streams
- Temperature range: ~ 150-20°C °C
- Thermal: 256 x 192 resoluon, 12μm≤40mk @ 25 F1.0
- Support dual image fusion
- Support audio and light alarm with built in red and blue flashing light
- 1/2.7” Progressive CMOS
- Optical: 2592 X 1944(5MP), 120DB WDR
- Thermal & Optical bi-spectrum video with one IP
- Support reliable fire detection and fire shield area
- Temperature excepon alarm
- * THERMAL MODULE
- Image / Scanning System Vanadium Oxide Uncooled Focal Plane Arrays
- Max. Resolution 5M 256 (H) x192 (V)
- Pixel Interval 12μm
- Response Waveband 8-14μm
- NETD ≤40mk@25°C F#1.0, 25Hz (Noise Equivalent Temperature Difference)
- Lens (Focal Length) 3.2mm Wide Angle
- IFOV 3.75 mrad
- Field of View 56° x 42°
- Min. Focusing Distance 0.3m
- DRI Distance Human Detection: 148m(486ft), Recognion: 36m(118ft), Idenfication: 21m(69ft)
- DRI Distance Vehicle Detection: 421m(1381ft), Recognion: 90m(295ft), Idenfication: 53m(174ft)
- Heat Detection Distance 44m(144ft)
- Aperture F1.1
- * OPTICAL MODULE
- Max. Image Resolution 5MP 2592(H)×1944(V)
- Image Sensor 1/2.7”Progressive CMOS
- Min.Illumination Color 0.03lux @ F1.6(AGC ON) ;
- B/W 0 lux @ IR ON
- Electronic Shutter Speed 1/5 s to 1/100,000 s
- Lens (Focal Length) 3.6mm (Wide Angle)
- FOV Horizontal: 81°, Vercal: 57°, Diagonal: 108°
- WDR 120dB
- Day & Night IR cut filter with auto switch
- * IMAGE FUNCTION
- Bi-spectrum Image Fusion Fusion view of thermal view and overlaid details of the optical channel
- * SMART FUNCTION
- Intelligent Analycs Optical: Intusion, Region Entrance, Region Exiting, Line
- Crossing,Pedestrian & Vehicle, Object Detection, Crossing
- Counting,Crowd Density, Queue Length, Heat MAP, Rare Sound,Face
- Detection
- Thermal: Intusion, Region Entrance, Region Exiting,
- Line Crossing detection, Fire detection,
- Temperature exception alarm, Pedestrian & Vehicle
- Temp Measurement Gobal, 12 points, 12 areas, and 12 line.
- Temperature Range -20°C to + 150°C (-4°F to + 302°F)
- Temperature Accuracy ±8°C (± 14.4 °F)
- Fire Detection Yes
- * ILLLUMINATOR
- Supplement Light Type IR and Warm Light
- Supplement Light Range Up to 30m (IR) / 15m (Warm light)
- IR Wavelenght 850nm
- Smart Supplement Light Yes
- Warnning Light 1 Red & 1Blue flasing light
- * NETWORK
- Main Stream Visible Light:
- 50Hz@25fps; 5MP(2592x1944),4MP(2592x1520),3MP(2304x1296),
- 1080P(1920x1080), 960P(1280*960),720P(1280x720)
- 60Hz@30fps; 5MP(2592x1944),4MP(2592x1520),3MP(2304x1296),
- 1080P(1920x1080), 960P(1280*960),720P(1280x720)
- Thermal:
- 50Hz/60Hz@25fps; 1280×720, 640x480
- Sub-stream Visible Light:
- 50Hz@25fps; 720P(1280x720),VGA(640x480),QVGA(320x240)
- 60Hz@30fps; 720P(1280x720),VGA(640x480),QVGA(320x240)
- Thermal:
- 50Hz/60Hz@25fps; 640 x 480, 320x240
- Mobile Stream Visible Light:
- 50Hz@25fps; VGA(640x480),QVGA(320x240)
- 60Hz@30fps; VGA(640x480),QVGA(320x240)
- Video Compression H.265/H.264/MJPEG
- Audio Compression G.711a/G.711u
- Protocols TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,
- HTTPS,FTP
- User/Host Level 10 users, 2 levels: Administrator, User
- Security Measures User authencaon (ID and PW), HTTPS encrypon, IP address filtering
- * INTEGRATION
- Alarm Input 1-ch inputs
- Alarm Output 1-ch outputs
- Alarm Action SD recording/relay output/smart capture/FTP upload/email linkage/
- audio alarm/Red & Blue flashing light
- Audio Input 1-ch
- Audio Output 1-ch outputs/ 1 Built-in speaker
- Reset Yes
- Communicaon Interface 1, RJ45 10M/100M self-adapve Ethernet interface
- SD Memory Card Built-in micro SD card slot (up to 256 GB)
- Analog Video Output (BNC) NA
- Web Browser IE10/11,Safari V12.1 above,Firefox V.52 above,
- Google chrome V.57 above,Edge V.79 above
- * PHYSICAL
- Menu language English, Russian, German, Italian, French, Portuguese,
- Spanish, Turkish, Japanese
- Power 12 VDC ± 20%, PoE (802.3af)
- Power Consumption Max.18.2W
- Operating Conditions Temp: -30~+60°C/ (-22~+149°F)
- Humidity: less than ≤ 90% RH
- Material / Protection Metal Housing / IP67 Waterproof
- Input Voltage / Current DC 12V/POE+, max. 22 W
- Dimensions 108mm x 314mm (4.5 x 12.36 inches)
- Weight Approx. 1247g / 2.7.1lb.)
