H.265 / H264 | 5MP | Network IP | PoE

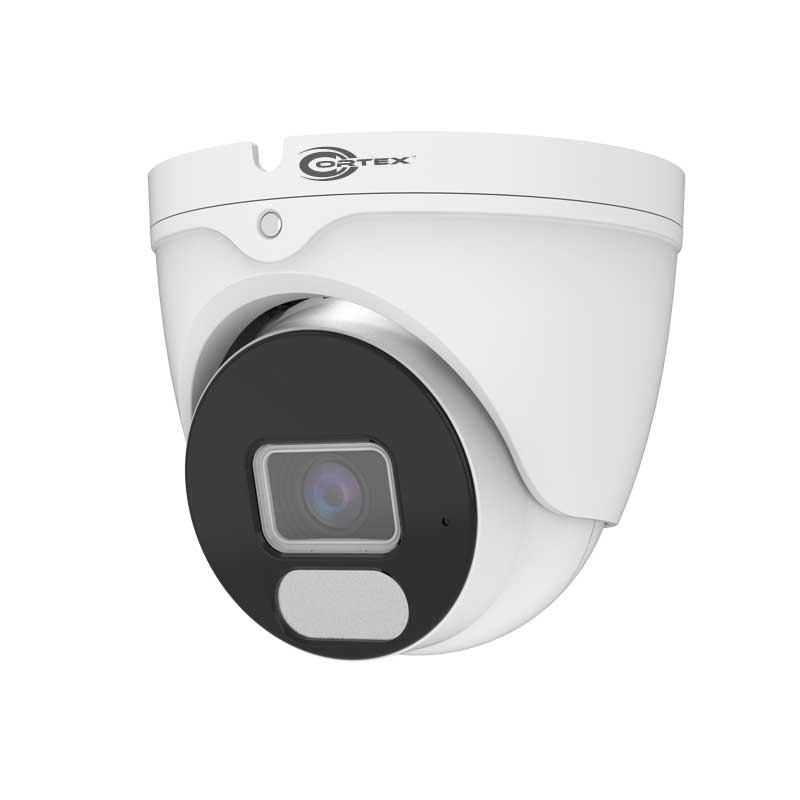

Designed for quick network installations and unrivaled performance, this Cortex Medallion 5MP IP turret camera is a great choice for dimly lit areas. By utilizing the Medallion Network utility tools that are powered by Cortex network technology and Cortex software, you may save a significant amount of valuable time and provide top performance. The ColorMAX CMOS sensor that is included, which makes use of the most recent technology, is capable of producing stunning nighttime video in full color. This Medallion camera will give the greatest overall performance and convey the entire power of 5 megapixels to your screen, regardless of whether you are watching live or monitoring remotely. Cortex® cameras for network environments have been developed to substantially upgrade commercial and industrial surveillance projects. The latest generation of essential components and corrosion resistant housings offer users the very best value for network camera requirements. Easy Plug and Play compatibility with Cortex 4k NVRs or Open compatibility supported third party VMS software.
Advanced analytics are integrated with edge processing and complete controls via Cortex Medallion series NVRs and DVRs.
Main Features
- Cortex® Network Camera Advanced GUI1
- Essential AI
- Essential Components
- 5MP 2880 (H) × 1620 (V) Resolution
- 1/2.7" Progressive CMOS
- 2.8mm wide angle lens: Horizontal: 110°, Vertical: 58°, Diagonal: 133°
- Dual lighting with ColorMAX 24/7 Color and IR (selectable)
- H.265 / H.264 Video Compression
- Auto switching infrared-cut filter (OSD on/off)
- Triple Video Streaming
- Built-In Microphone
- Micro SD slot, up to 256GB
- IEEE 802.3af / IEEE 802.3at | PoE
- IP66 Waterproof Metal Turret Housing Casing
- Eyeball design for easy adjustments on an aluminum based with ABS cover
- Effective Pixels:5MP 2592(H)×1944(V)
- Imaging Device: 1 / 2.7”
- Scanning System: Progressive CMOS
- Min. Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
- Focal Length : 2.8mm wide angle
- Max. Aperture Ratio: F No. 1.6±5%
- Lens Type: Fixed (M12)
- Angular Field of View: Horizontal:81°, Vertical:57°, Diagonal:108°
- Min. Object Distance: 2m)
- IR Viewable Length: Up to 98 feet (30m)
- Camera Title: On / Off
- Day & Night:
- IR cut filter with auto switch (Day / Night / Auto / Schedule)
- Backlight Compensation : Off / On (5 Zone)
- Wide Dynamic Range: DWDR
- Digital Noise Reduction: 3D DNR
- Motion Detection : Off / On (8 Level)
- Privacy Masking: Off / On (4 Zone, Rectangle)
- Gain Control: Auto
- White Balance: Auto / Manual / Indoor
- Electronic Shutter Speed: 1/5 ~ 1/20000s
- Flip: / Mirror Flip / Rotation
- On-Board Storage:Micro SD slot, up to 256GB
- Audio: NA
- Alarm: Yes
- Hardware Reset: Yes
- Ethernet: RJ45 (10 / 100BASE-T)
- Video Compression Format: H.265 / H.264
- Resolution:
- Mainstream: 5MP(2592×1944),4MP(2592x1520)3MP(2304x1296),1080P(1920x1080)960P(1280x960),720P(1280x720)
- Substeam:720P(1280x720),VGA(640x480),QVGA(320x240)
- Mobilestream: VGA(640x480), QVGA (320x240)
- Max. Framerate: 20fps
- Video Quality Ajustment: 8Kbps ~ 8Mbps
- Bitrate control method: CBR/VBR
- Streaming Capability :Triple-Stream (Main / Sub / Mobile)
- IP: IPv4
- Image Settings:
- Image rotate, Saturation, Contrast, Hue, Brightness, Sharpness
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Security:
- IP address filter;complicated,password;Authenticated username and password
- Streaming Method: Unicast / Multicast
- Max. User Access: Max 7 (admin+user)
- Application Programming Interface: Open compatibility ( Profile S/G/T)
- Web Viewer :
- IE8,9,10,11, Chrome 44/lower, Firefox 51 /lower, Safari 11/ lower
- Illumination: DragonFire® 1pc LEDs
- PoE: Yes, IEEE 802.3af / IEEE 802.3at
- Ingress Protection: Metal Housing IP66 Waterproof
- Color / Material: White / Metal
- Input Voltage / Current: D12V /POE(IEEE802.3af)
- Power Consumption: 3.6W
- Storage Conditions: -30~+60°C (-22~+140°F) less than ≤ 95% RH
- Operating Conditions: -30~+55°C (-22~+131°F) ) less than ≤ 95% RH
- Dimension:135 x 135 x 120 mm (5.3 x 5.3 x 4.7 inches)
- Weight:Approximately 474g (1.04 lbs)
