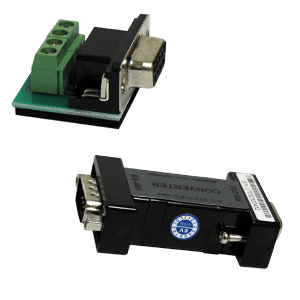

This modular converter adapts signals so a PC or similar device with a COM port (RS232C) can communicate with equipment or products that require RS485 serial formatted data / control, such as POS (point-of-sale) devices.

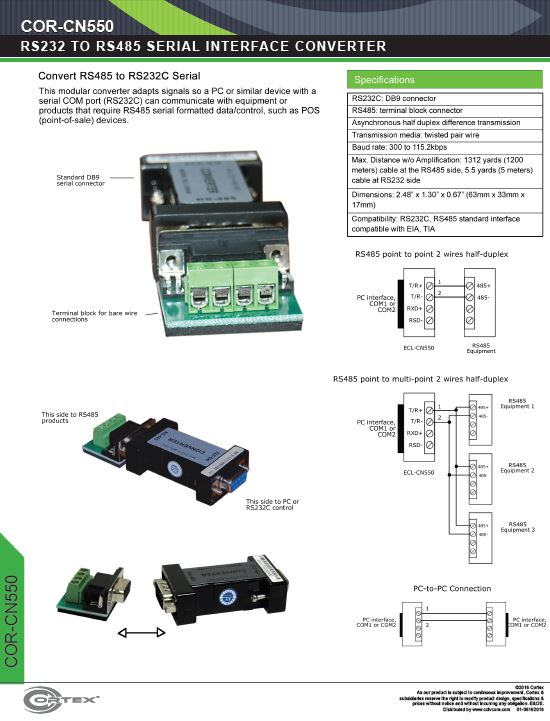

Main Features and Specifications
- Standard D89 serial connector
- Terminal block for bare wire connections
- DB9 connector on RS232 side
- Screw terminal connector on RS485 side
- Working mode: Asynchronous half-pair-work difference transmission.
- RS2332C: DB9
- RS485: Terminal block connector
- Asynchronous half duplex difference transmission
- Baud rate: 300 to 115 2kbps
- Max Distacnce W/O Amplification" 1312 yards (1200 meters)
- Dimensions: 2.48" x 130" x 0.67" (63mm x 33mm x 17mm)
- Compatibility RS2332C ,RS485 standard interface compaitible with IEA, TIA
