Perfect for CCTV Camera Projects

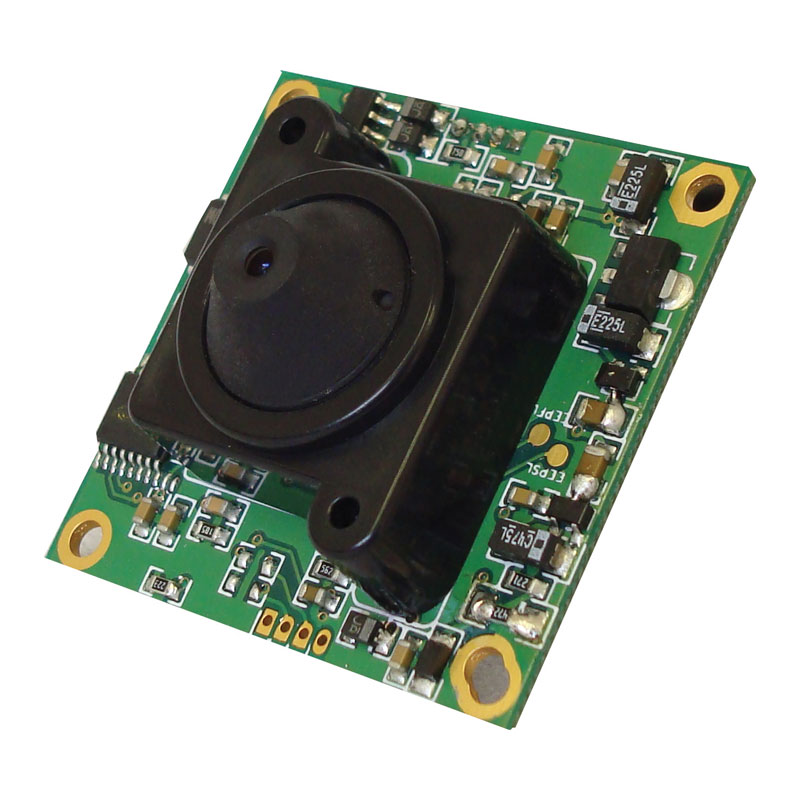

This high resolution board camera mesures only 1.26 inches square and is approximately .625 inches (5/8 of an inch) thick. It runs on standard 12VDC (100mA nominal) and includes a 14 inch combination power cord; video cord. With a 3.7mm pinhole lens, it is perfect fr creating hidden camera installations.
Please note this is an indoor camera and if you place it outdoors you'll have to house it in such a way as to protect it from the environment, keep it cool (or warm) and dry, etc.
Replaceable Lens
Most of our board cameras feature a removable (and replaceable) lens.
Main Features
- 1/3" color Sony CCD video sensor
- 420-line resolution
- 3.7mm pinhole lens
- NTSC
- Effective pixels:
- NTSC: 512 x 492 (251k)
- PAL:512 x 582 (297k)
- Auto-iris technology present for controlling auto-iris lenses
- Minimum illumination 0.03 Lux
- Low light sensitive
- Auto electronic shutter (AES)
- For indoor surveillance placement in do-it-yourself surveillance projects and repair.
- 1/3" color Sony CCD video sensor
- 420-line resolution
- 3.7mm pinhole lens
- NTSC
- Effective pixels:
- NTSC: 512 x 492 (251k)
- PAL:512 x 582 (297k)
- Auto-iris technology present for controlling auto-iris lenses
- Minimum illumination 0.03 Lux
- Low light sensitive
- Auto electronic shutter (AES)
- Auto white balance (AWB)
- Auto backlight compensation (ABC)
- Attached power and video cable leads
- Power: 12VDC, 110mA (nominal)
- Power supply not included.
- Optional models: COR-454DP pinhole lens model and COR-454DA auto-iris control equipped model
