H.265+ / H.265 / H.264 | 8MP (4k) | Network IP | PoE| LPR | ANPR

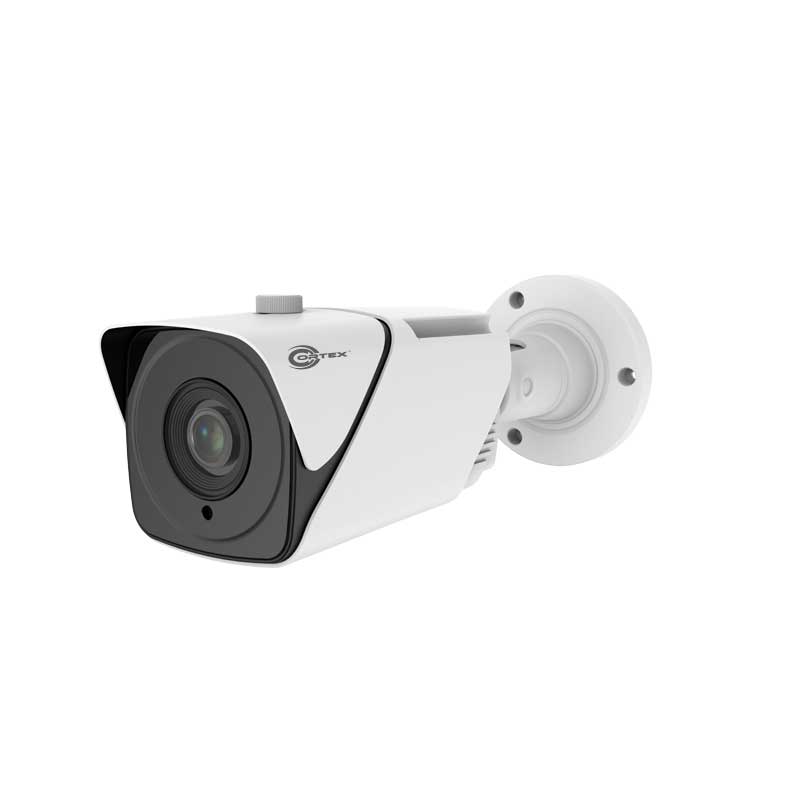

The Cortex® Long range Medallion Series network bullet 8MP (4k) cameras are ideal for everyday commercial use but robust enough for industrial high-demand projects. The IP850LRA is also equipt with ANPR technology which captures the characters on vehicle plates and digitizes the information for database storage and text searching. The LPR capture system is part of the AI firmware and can be enhanced with specialized image settings to improve performance further. This model is equipped with onboard SD card recording for edge storage which also allows for 3G / 4G solar panel-based remote viewing. A full suite of intelligent analytics is incorporated and truly increases this impressive network camera's value.
The Cortex® One-lock auto focus technology delivers reliable focusing in extreme conditions and prevents loss of image clarity when switching between day and night scenes. The main benefit of autofocus is the ease of use, but this is amplified by the dependable one-lock technology that takes advanced measures to prevent focus shift with corrected lenses and filters. This 8MP (4k) IP camera delivers superior performance in low light thanks to a premium CMOS sensor and the low light lens.
The Cortex IP systems are open compatibility, third-party compatible, and plug-and-play with Medallion NVRs and DVRs
What is the best long-range 8MP (4k) IP camera? Cortex IP models are highly rated by installers and deployed worldwide.
<8>Make sure test this 8MP camera through online demos or at a local showroom.

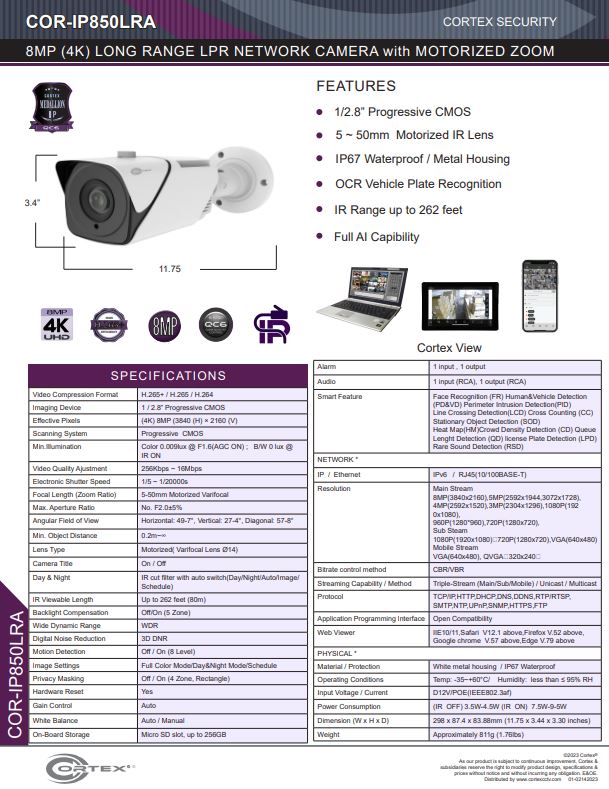

Main Features
- ANPR and LPR viewing and capture
- Dedicated (enhanced) license plate reading image settings
- 8MP (4k) (3840 (H) × 2160 (V) Resolution
- 1 / 2.7” Progressive CMOS
- 5 ~ 50mm (Motorized) Lens
- H.265+ / H.265 / H.264 Video Compression
- Medallion and Open compatibility
- Auto-switching infrared-cut filter (OSD on/off)
- Multiple adjustable Video Streaming
- IP67 Waterproof Metal Housing Casing
- IR Viewable Length Up to 262 feet (80m)
- Video Compression: H.265+ / H.265 / H.264
- Imaging Device: 1/2.8” Progressive CMOS
8
- Effective Pixels : 8MP (4K) (3840 (H) × 2160 (V)
- Scanning System: Progressive CMOS
- Min. Illumination: Color 0.009lux @ F1.6(AGC ON) ; B/W 0 lux @
IR ON
- Video Quality Adjustment: 256Kbps ~ 16Mbps
- Electronic Shutter Speed: 1/5 ~ 1/20000s
- Focal Length (Zoom Ratio):5-50mm Motorize Varifocal
- Max. Aperture Ratio : No. F2.0±5%
- Angular Field of View: Horizontal: 49-7°, Vertical: 27-4°, Diagonal: 57-8°
- Min. Object Distance: 0.2m~∞
- Lens Type: Motorize Varifocal
- Camera Title: On / Off
- Day & Night: IR cut filter with auto switch(Day/Night/Auto/Image/
Schedule)
- IR Viewable Length: Up to 262 feet (80m)
- Backlight Compensation: Off/On (5 Zone)
- Wide Dynamic Range: WDR
- Digital Noise Reduction: 3D DNR
- Motion Detection: Off / On (8 Level)
- Image Settings:
- Full Color Mode/Day&Night Mode/Schedule
- Privacy Masking: Off / On (4 Zone, Rectangle)
- Audio: 1 input (RCA), 1 output (RCA)
- Hardware Reset : Yes
- Gain Control: Auto
- White Balance: Auto / Manual
- On-Board Storage: Micro SD slot, up to 256GB
- Alarm: 1 input , 1 output
- Smart Feature:
- License Plate Detection (LPD)
- Face Recognition(FR)
- Human & Vehicle Detection (PD&VD)
- Perimeter Intrusion Detection(PID)
- Line Crossing Detection(LCD) Cross Counting (CC)
- Stationary Object Detection (SOD)
- Heat Map(HM)Crowd Density Detection (CD)
- QueueLength Detection (QD)
- Rare Sound Detection (RSD)
- NETWORK
- IP / Ethernet: IPv6 / RJ45(10/100BASE-T)
- Resolution:
- Main Stream
8MP(3840x2160),5MP(2592x1944,3072x1728),
4MP(2592x1520),3MP(2304x1296),1080P(192
0x1080),960P(1280*960),720P(1280x720),
- Sub Steam
1080P(1920x1080)，720P(1280x720),VGA(640x480)
- Mobile Stream
VGA(640x480), QVGA（320x240）
- Bitrate control method: CBR/VBR
- Streaming Capability / Method: Triple-Stream (Main/Sub/Mobile) / Unicast / Multicast
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP
- Security: IP address filter;complicated password;Authenticated
username and password
- Application Programming Interface: Open Compatibility, ( Profile S / G / T)
- Web Viewer:IIE10/11,Safari V12.1 above,Firefox V.52 above,
Google chrome V.57 above,Edge V.79 above
- PHYSICAL
- Material / Protection: Metal Housing / IP67 Waterproof
- Operating Conditions: Temp: -35~+60°C/ Humidity: less than ≤ 95% RH
- Input Voltage / Current: D12V/POE(IEEE802.3af)
- Power Consumption:
- Dimension (W x H x D): 242 x 87.4 x 83.88mm (9.5 x3.44 x 3.30 inches)
- Weight: Approximately 811g (1.76lbs)
