H.265 | 8MP (4K) | Video Encoding | PoE

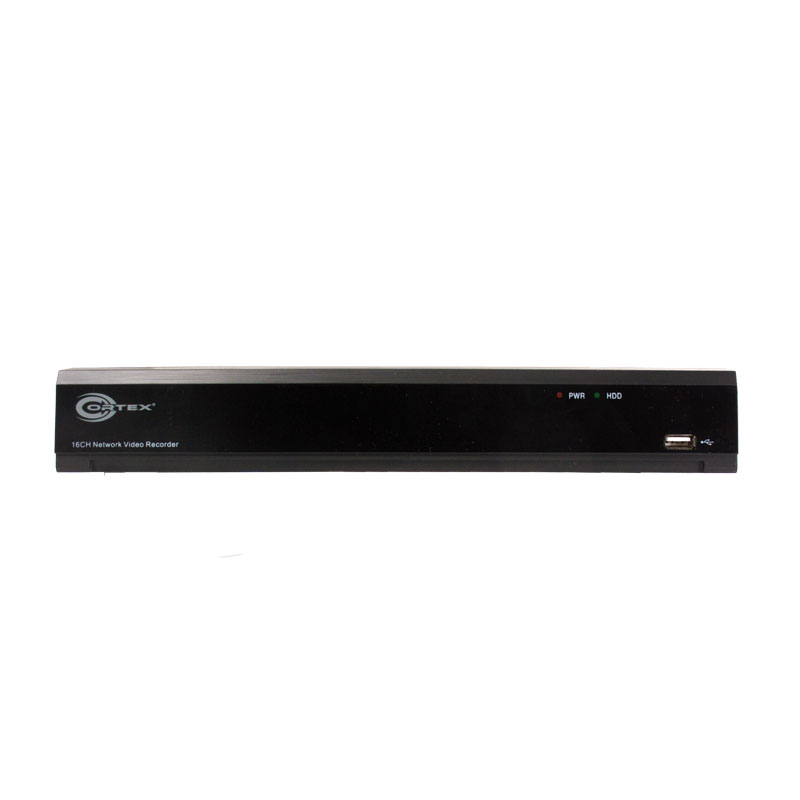

This Medallion Series 4K NVR has powerful fisheye camera tools that allow dewarping and 3D electronic PTZ in a virtual environment that can be accessed on live displays or remotely via smart phone apps. Immersive technology that allows your clients to move in this world of pinch zoom, VR PTZ and 3D interactivity.
- Cortex® Medallion 4K NVR with Intelligent Features
- Simultaneous HDMI and VGA Output
- Various recording resolutions: 720P, 1080P, 2K, 4K UHDH.265 High Efficiency Compression
- Cortex panoramic immersive technology support for Medallion Fisheye models
- Video Encoding
- 16 Power over ethernet (PoE) ports on-board
- Modern Intuitive GUI
- Simultaneous HDMI and VGA Output
- Cortex Panoramic Dewarping Support
- Intelligent Analytics Setup
- 128 Channel CMS
- Quick QR Code
- Plug and Play
- Multiplex Functionality
- 4K in and 4K out
- NDAA Compliant - FCC approved
- Remote view: VMS software
- Smartphone app: Cortex IQ
- VIDEO *
- Resolution: 12MP, 8MP ,5MP, 3MP , 2MP (1080P) ,1.3MP (960P),
1.0MP (720P)
- RECORDING BANDWIDTH*
- IP-Recording Bandwidth
(Maximum input Bandwidth):112Mbps
- IP-Recording Bandwidth
(Maximum output Bandwidth):98Mbps
- Video System: NTSC / PAL
- Operation System: Linux (embedded)
- IP Video Input: 16ch PoE
- LIVE / PLAYBACK*
- Compression: Audio: G.711A;G.711U / Video : H.264/H.264+/H.265/H.265+
- Frame rate (speed):
- 4K:25fps
- 4MP:80fps
- 2MP:180fps
- Event: MD (Sensitivity Level 1~8) , Videlo loss ,
Beep, Email, Push notification to Mobile APP
- Playback function: Fast forward / backward (2x, 4x, 8x,16x),Slow forward (1/2x, 1/4x, 1/8x,1/16x)
- Multiplex Operation{} live display - record - playback - backup and
network
- Feature: 1 / 4 / 6 / 8 / 9 / 10 / 12 / 13 / 14 / 16 / S.E.Q
- Fisheye: Use WEB, VMS, CORTEX iQ, local GUI does not support
de-warping
- Playback Max 16CH playback
- UI / MONITORING *
- WEB: IE10/11,Safari V12.1 above ,Firefox V.52
above, Google chrome V.57 above, Edge V.79
above
- Push notification: Yes
- Mobile viewer: CORTEX IQ
- Ai Smart Features: Face Recognition (FR) Human&Vehicle
Detection (PD&VD) Perimeter Intrusion
Detection(PID)
Line Crossing Detection(LCD) Cross Counting
(CC)Stationary Object Detection (SOD)
Heat Map(HM)Crowd Density Detection (CD)
Queue Lenght Detection (QD) license Plate
Detection (LPD) Rare Sound Detection (RSD)
- INTEREFACE*
- P/W Reset: Factory Reset : Press 10 seconds
- *CONNECTIONS*
- Ethernet: 1 RJ45 10/100/1000 Base-T
- POE: 16 X RJ45, 802.3at/af / 48V PoE
- USB: USB2.0 x 1 (front), USB2.0 x 1 (rear)
- Audio output: 1CH out put (RCA)
- E-sata: N/A
- HDD: 2 SATA HDD, up to 14TB
- Line in: N/A
- Alarm input/output: 16 in / 1 out
- MONITORS*
- HDMI: 1(1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080,
2560x1440, 3840x2160/EDID)
- VGA: 1(1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 )
- *GENERAL*
- OSD Language: English French Spanish Portugues German Italian Greek
Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean
Japanese Thai Hindi Romanian Dutch Polish
- *ELECTRICAL*
- Input Voltage/Current: DC48V/3.75A / 48V PoE
- Power consumption(excluding hard disk): 8W
- ENVIRONMENTAL*
- Working Temperature: -10°C~+50°C (14°F ~ 122°F)
- Working Humidity Less than 90%RH
- MECHANICAL DESIGN*
- Dimension ( W x D x H ): 300 x 302 x 54mm (11.6 x 11.7 x 2 inches
