H.265 / H.264 | Network IP | PoE | DragonFire® LEDs

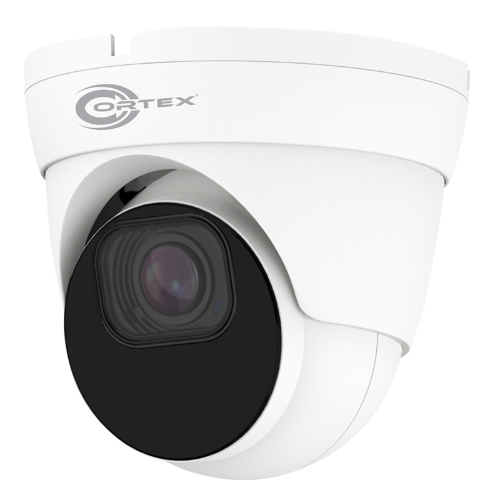

2MP network cameras from the medallion TRVA series are designed for outdoor applications were motorized varifocal lenses are ideal. Not only can you zoom in and out from a remote location, this model also had auto focus and onelock tech which prevents focus shift and out of focus issues. 1080P is an affordable resolution that is globally used and is the standard for video surveillance in two megapixel IP camera range. The H.265 compression on this 2MP IP camera helps to speed up network bandwidth performance and reduce storage requirements.
This Cortex camera model was specifically manufactured for areas that require fine-tuning via remote app or NVRs. With on board analytics and advanced low light chipsets from the signature CMOS Collection. The COR-IP2TRVA is perfect for every day use and can be switched to permanent color mode in extremely low light conditions while still maintaining fantastic color saturation with very little noise. Controls for WDR wide dynamic range and many other image enhancements can be performed via web browser or through the NVR GUI.
The housing is fabricated out of aluminum alloy with a big finish for long lasting corrosion resistant performance.
The onboard power over ethernet technology makes connecting to a comparable POE NVR easy. Open compatibility with the latest generation of handshaking for third-party installations.
An internal SD card can be added to record on board.
Custom fitted back boxes, wall brackets and pendant brackets are available for made to fit customized installations.
Main Features
- Premium Starlight Technology
- 2MP 1920(H) × 1080(V) Resolution
- Cortex Security
- 1/2.8" CMOS
- 2.7 ~ 13.5mm (Motorized / Auto focus) Lens: H.FOV: 111 ~ 33°
- 4 pcs (Array) (DragonFire® SMD)
- 145 feet (45m) IR Range
- H.265/H.264 Video Compression
- Auto switching infrared-cut filter (OSD on/off)
- Multiple Adjustable Video Streaming
- IEEE 802.3af / IEEE 802.3at | PoE
- IP66 Waterproof Metal Housing Casing
- NDAA Compliant - FCC approved
- Resolution: 2MP 1920(H)×1080(V)
- Image Sensor: 1/2.8” Progressive CMOS
- Min. Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
- Shutter Time: Auto/Manual 1/5 ~ 1/20000s
- Slow Shutter: Support
- Lens:2.7 ~ 13.5 mm (Motorized) H.FOV: 111 ~ 33°
- F-No:F No. 1.83 (W) ~ 3.32 (T) ±5%
- Day & Night: IR cut filter with auto switch (Day / Night / Auto / Schedule)
- Digital Noise Reduction: 3D DNR
- WDR: 120 dB
- Video Compression: H.265 / H.264
- Video Bit Rate: 8Kbps ~ 8Mbps
- Triple Stream: Yes
- Resolution:
- Mainstream (default 30fps)1080P (1920x1080), 720P (1280x720)
- Substeam (default 10fps ) 720P (1280x720),VGA (640x480), QVGA (320x240)
- Mobilestream (default 10f VGA (640x480), QVGA (320x240)
- Image Settings:
- Flip,Rotation,Corridor mode, Saturation, Hue, Brightness, Contrast, Sharpness adjustable
- BLC: Support
- ROI: Support
- Privacy Mask: Support
- Smart Feature: Face Detection, Human / Vehicle Detecion
- AI Analytics:
- Cross line Detection, Intrusion Detection, Stationary Object Alert
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- System Compatibility: Open compatibility ( Profile S, Profile G,ProfileT)
- Network Interface: RJ45 10M / 100M Ethernet interface x1
- Remote view: Web browsers, Cortex VMS, Cortex CMS
- LED: 4 pcs (Array) (DragonFire® SMD
- IR Range: Up to 145 feet (45m)
- SD storage: Yes (Micro SD / SDHC / SDXC slot, up to 128 GB)
- Alarm Trigger: 1 input / 1 output
- Audio: 1 input / 1 output (RCA)
- Video Output: NA
- Reset System: Yes
- PoE: Yes
- Casing: Metal housing IP66 Waterproof
- Input Voltage / Current:DC 12V / POE
- Power Consumption: 4.8W
- Storage Conditions: -30~+60°C (-22~+140°F) less than ≤ 95% RH
- Operating Conditions:-30~+55°C (-22~+131°F) ) less than ≤ 95% RH
- Dimension: 136 x136 x127 mm (5 x 5 x 5.3 inches)
- Weight: Approximately 1.59 lbs ( 722g )
Specification Sheet
