H.265+ / H.265 / H.264 | 8MP (4k) | Network IP | PoE | IR LEDs

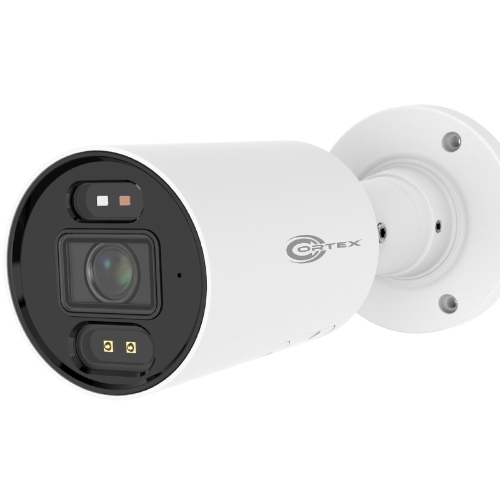

This Cortex Medallion 8MP (4K) ColorMax Ultra bullet network camera is the ultimate tool for night time low light viewing. Designed for fast network installs under soffits and overhangs and unparalleled performance in both commercial and residential environments. Perfectly suited for surveillance in dimly lit areas, these Ultra IP cameras can amplify existing lights and provide additional on board illumination for brilliant, high color saturation images.
This model is perfect for wide angle viewing and can be used in areas where a large horizontal angle is needed. The ColorMax Ultra CMOS sensor incorporated uses the latest technology to provide amazing night time shots in UltraHD 4K and full color. Whether you're monitoring live or remotely, this Cortex ColorMax IP camera will provide the best all around performance and deliver the full power of ColorMax night viewing to your screen.
The Cortex® VMS and CMS software bundles are 128 channel ready which can provide custom design objectives and cost effective prices. Use with Cortex Medallion NVRs and take advantage of all the extra features with native settings and feature support.
Main Features
- ColorMax Ultra Technology in a bullet format
- Perfect for overhangs and pole mounting
- Cortex Security pnp instant setup
- 8MP (4K) (3840 x 2160) Resolution
- Medallion Series Network Camera
- Intelligent Analytics with Full AI
- 2 way audio with microphone and speaker
- Individual Deterrent lights
- 1/1.8”Progressive CMOS
- F1.0 Wide Angle Lens
- H.265+ / H.265 / H.264 Video Compression
- Warm Light Viewable length 80 feet (25m)
- Auto visible light
- Multiple adjustable Video Streams
- IEEE 802.3af / IEEE 802.3at | PoE
- IP66 Waterproof Metal Housing
- Remote view: Cortex® VMS, Cortex IQ app
- NDAA Compliant - FCC approved

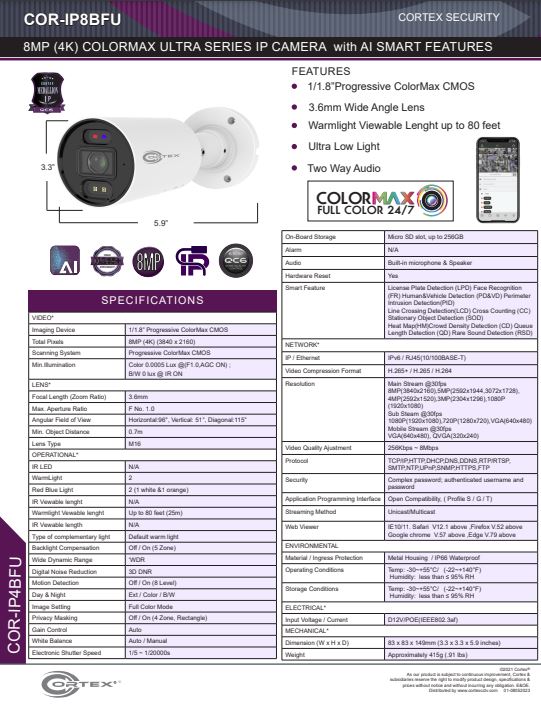

- VIDEO*
- Imaging Device : 1/1.8” Progressive CMOS
- Total Pixels 8MP (4k) (3840 x 2160)
- Scanning System Progressive CMOS
- Min.Illumination Color 0.0005 Lux @(F1.0,AGC ON) ;
B/W 0 lux @ IR ON
- LENS*
- Focal Length (Zoom Ratio): Wide Angle Lens
- Max. Aperture Ratio: F1.0
- Angular Field of View: Horizontal:96°, Vertical: 51°, Diagonal:115°
- Min. Object Distance: 0.7m
- Lens Type: M16
- OPERATIONAL
- IR LED : N/A
- Warm Light Illumination: 2 Dragonfire White Light
- Warning Light: 2 (1 white &1 orange)
- IR Vewable lenght: N/A
- Warmlight Vewable lenght: Up to 80 feet (25m)
- IR Vewable length :N/A
- Type of complementary light: Default warm light
- Backlight Compensation : Off / On (5 Zone)
- Wide Dynamic Range: ‘WDR
- Digital Noise Reduction :3D DNR
- Motion Detection : Off / On (8 Level)
- Day & Night :Ext / Color / B/W
- Image Setting :Full Color Mode
- Privacy Masking: Off / On (4 Zone, Rectangle)
- Gain Control: Auto
- White Balance :Auto / Manual
- Electronic Shutter: Speed 1/5 ~ 1/20000s
- On-Board Storage : Micro SD slot, up to 256GB
- Alarm :N/A
- Audio: Built-in microphone & Speaker
- Hardware Reset: Yes
- AI Smart Feature:
- License Plate Detection (LPD)
- Face Recognition(FR)
- Human&Vehicle Detection (PD&VD)
- PerimeterIntrusion Detection(PID)
- Line Crossing Detection(LCD) Cross Counting (CC)
- Stationary Object Detection (SOD)
- Heat Map(HM)Crowd Density Detection (CD)
- QueueLength Detection (QD)
- Rare Sound Detection (RSD)
- NETWORK*
- IP / Ethernet: IPv6 / RJ45(10/100BASE-T)
- Resolution:
- Mainstream: @30fps,8MP(3840x2160),5MP(2592x1944,3072x1728),
4MP(2592x1520),3MP(2304x1296),1080P(1920x1080)
- Substeam: @30fps, 1080P(1920x1080),720P(1280x720),VGA(640x480)
- Mobilestream: @30fps VGA(640x480), QVGA(320x240)
- Video Compression: Format H.265+ / H.265 / H.264
- Video Quality Ajustment: 256Kbps ~ 8Mbps
- Bitrate control method: CBR/VBR
- Streaming Capability / Method: Triple-Stream (Main/Sub/Mobile) / Unicast / Multicast
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Security: Complex password; authenticated username and password
- Streaming Method: Unicast / Multicast
- Max. User Access: Max 7 (admin+user)
- Application Programming Interface: Open Compatibility, ( Profile S / G / T)
- Web Viewer: IE10/11. Safari V12.1 above ,Firefox V.52 above
Google chrome V.57 above ,Edge V.79 above
- ENVIRONMENTAL*
- Material / Protection: Metal housing / IP67 Waterproof
- Operating Conditions: Temp: -35~+55°C (-22~+140°F) / Humidity: less than ≤ 95% RH
- Storage Conditions: Temp: -35~+55°C (-22~+140°F) / Humidity: less than ≤ 95% RH
- ELECTRICAL**
- Input Voltage / Current D12V/POE(IEEE802.3af)
- MECHANICAL*
- Dimension (W x H x D) 88 x 88 x 228 mm (3.5 x 3.5 x 9 inches)
- Weight: Approximately 415g (.91 lbs)
