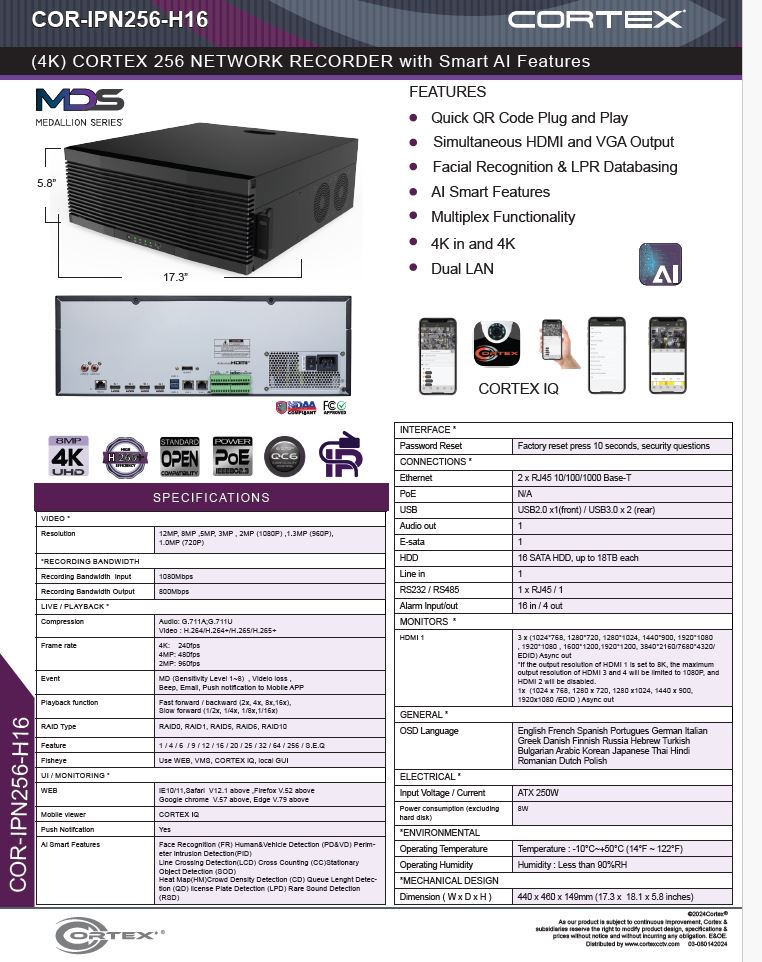

Cortex 256 camera NVR | Dual Local NIC ports | Advanced AI NVR

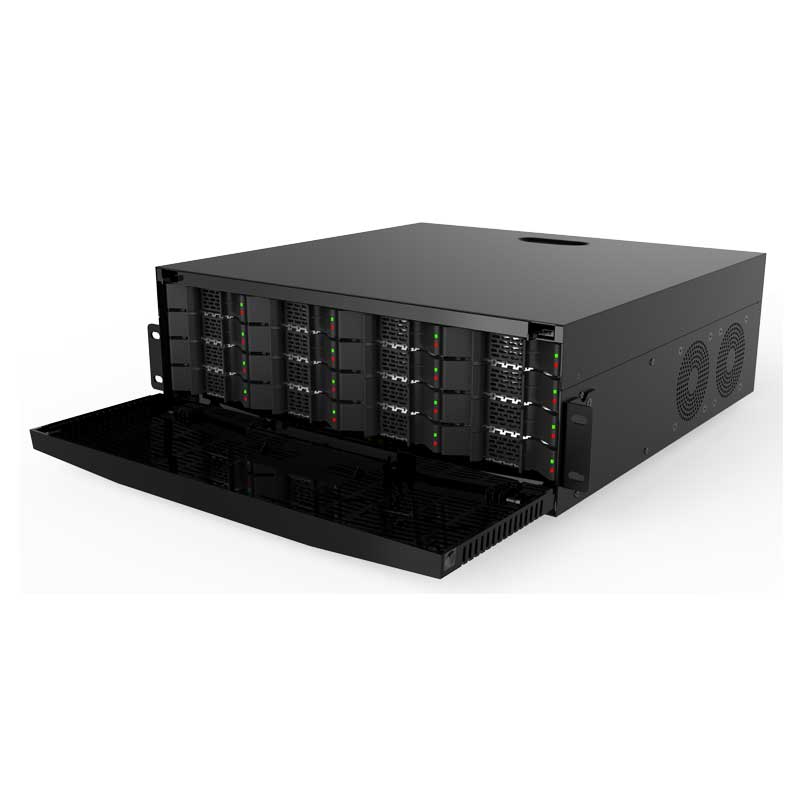

The trending features on this 256 channel NVR are plenty of internal storage and Full on-board AI Controls. Designed for commercial and industrial applications, this Medallion Enterprise NVR from Cortex has multi-channel live decoding and playback and 4 independent HDMI outputs. The internal storage capacity (16 SATA HDD bays each HDD up to 12TB) is ideal for medium and large applications that require long term recording at high resolution . Its signature Medallion® IP user GUI is the same across the entire line of Medallion NVRs which helps in expanded projects. The open compatibility protocols helps this unit integrate with many brands of IP cameras. The Cortex Security software suite includes powerful smartphone apps, VMS for PC and MAC and network tools.
Main Features
- Cortex Security 4K NVR
- Medallion Enterprise NVR
- 256-channel input / 128 channel input
- Advanced RAID storage array
- RAID 0, 1, 5, 6, 10
- Full Intelligent Analytics and AI controls
- Cortex® 4K in and 4K out
- up to 8K resolution
- E-sata port
- Modern Intuitive GUI
- Simultaneous Quad HDMI output
- Third-party IP cameras supported
- Live / Playback decoding
- Support cloud redundant backup
- Ethernet: RJ-45 port (100/1000M）
- Simultaneous HDMI and VGA Output
- Cortex panoramic immersive technology support for Medallion Fisheye models
- Remote VMS Software controls for Cortex Security
- Internal HDD: 16 SATA HDDs
- iOS and Android using CortexIQ app
- PTZ Support
- VIDEO *
- Resolution: 12MP, 8MP ,5MP, 3MP , 2MP (1080P) ,1.3MP (960P),
1.0MP (720P)
- RECORDING BANDWIDTH*
- IP-Recording Bandwidth
(Maximum input Bandwidth):1080Mbps
- IP-Recording Bandwidth
(Maximum output Bandwidth):800Mbps
- Video System: NTSC / PAL
- Operation System: Linux (embedded)
- IP Video Input: 16ch PoE
- LIVE / PLAYBACK*
- Compression: Audio: G.711A;G.711U / Video : H.264/H.264+/H.265/H.265+
- Frame rate (speed):
- 4K:240fps
- 4MP:480fps
- 2MP:960fps
- Event: MD (Sensitivity Level 1~8) , Video loss ,
Beep, Email, Push notification to Mobile APP
- Playback function: Fast forward / backward (2x, 4x, 8x,16x),Slow forward (1/2x, 1/4x, 1/8x,1/16x)
- Multiplex Operation{} live display - record - playback - backup and
network
- Feature: 1 / 4 / 6 / 9 / 12 / 16 / 20 / 25 / 32 / 64 / 256 / S.E.Q
- Fisheye: Use WEB, VMS, CORTEX iQ, local GUI
- RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
- UI / MONITORING *
- WEB: IE10/11,Safari V12.1 above ,Firefox V.52
above, Google chrome V.57 above, Edge V.79
above
- Push notification: Yes
- Mobile viewer: CORTEX IQ
- Ai Smart Features: Face Recognition (FR) Human&Vehicle
Detection (PD&VD) Perimeter Intrusion
Detection(PID)
Line Crossing Detection(LCD) Cross Counting
(CC)Stationary Object Detection (SOD)
Heat Map(HM)Crowd Density Detection (CD)
Queue Lenght Detection (QD) license Plate
Detection (LPD) Rare Sound Detection (RSD)
- INTEREFACE*
- P/W Reset: Factory Reset : Press 10 seconds
- *CONNECTIONS*
- Ethernet: 2 x RJ45 10/100/1000 Base-T
- POE: N/A
- USB:USB 2.0 x1 (front, USB 3.0 x 2 (rear)
- Audio output: 1CH out put (RCA)
- E-sata: 1
- HDD: 8 SATA HDD, up to 18TB each
- Line in: N/A
- RS232: 1 x RJ45
- RS485: 1
- Alarm input/output: 16 in / 4 out
- MONITORS*
- HDMI: 3 x (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920
x 1080, 1920 x1080 , 1600 x 1200,1920 x1200, 3840 x 2160,
7680 x 4320 / EDID) Async out
*If the output resolution of HDMI 1 is set to 8K, the maximum
output resolution of HDMI 3 and 4 will be limited to 1080P, and
HDMI 2 will be disabled.
1 x (1024 x 768, 1280 x 720, 1280 x1024, 1440 x 900,
1920x1080 /EDID)
Async out
- *GENERAL*
- OSD Language: English French Spanish Portugues German Italian Greek
Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean
Japanese Thai Hindi Romanian Dutch Polish
- *ELECTRICAL*
- Input Voltage/Current: ATX 250W
- Power consumption(excluding hard disk): 8W
- ENVIRONMENTAL*
- Working Temperature: -10°C~+50°C (14°F ~ 122°F)
- Working Humidity Less than 90%RH
- MECHANICAL DESIGN*
- Dimension ( W x D x H ): 440 x 460 x 149mm (17.3 x 18.1 x 5.8 inches)
