H.265 / H.264 | 5MP 1080P | Network IP | PoE | Dragonfire® IR

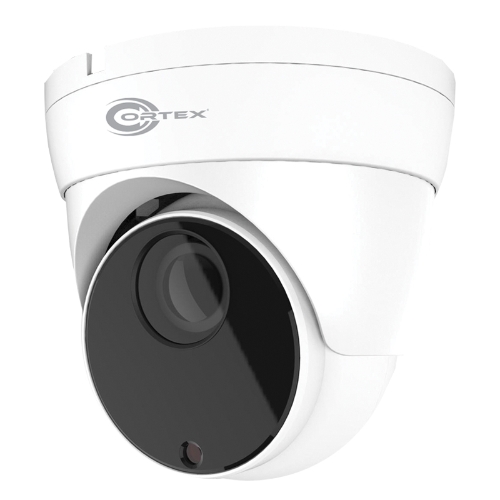

Medallion 5MP IP Outdoor VF IR Turret Network Camera with 2.8-12mm motorized zoom. High Resolution IR technology provides amazing night time shots in full color. This Medallion IP Dome/Turret Security Camera has 2592(H) × 1944(V) resolution.
Main Features
- Premium Components
- 5MP 2592 (H) × 1944 (V) Resolution
- 1/2.9” Progressive CMOS
- 2.7 ~ 12mm (Motorized) Lens
- H.FOV: : 103 ~ 28°
- 1 pcs (Array)
- H.265 / H.264 Video Compression
- Premium Components
- Auto switching infrared-cut filter (OSD on/off)
- 3 individually adjustable streams
- IEEE 802.3af / IEEE 802.3at | PoE
- IP66 Waterproof Metal Housing Casing
- Up to 145 feet (45m) IR Rang
- IP5T with "RF" for Fixed Lens Turret or "RV" for Varifocal
- Resolution: 5MP 2592(H)×1944(V)
- Image Sensor: 1/2.9" Sony® Exmor Progressive CMOS (6.82M pixels)
- Min. Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
- Shutter Time: Auto/Manual 1/5 ~ 1/20000s
- Shutter Controls: Active Shutter Controls
- Lens: 2.8 ~ 12mm (Motorized) H.FOV: 87 ~ 28°
- F-Stop: F 1.6 ~ 2.9 ±5%
- Day&Night: Auto switching infrared-cut filter (OSD on/off)
- WDR: Digital WDR
- Video Compression: H.265/H.264
- Video Bit Rate: 8Kbps ~ 8Mbps
- Video Streaming: 3 Individually Adjustable Streams
- Frame Rate:
- Mainstream: Up to 15fps, 5MP(2592×1944),4MP(2592x1520), 3MP(2048x1520),1080P(1920x1080),
960P(1280x960), 720P(1280x720)
- Substeam: 720P(1280x720),VGA(640x480),QVGA(320x240)
- Mobilestream: VGA(640x480), QVGA（320x240）
- Image Settings:
- Image rotate, Saturation, Contrast, Hue, Brightness, Sharpness
- BLC: Supported
- ROI: Supported
- Privacy Mask: Supported
- AI Analytics:
- Cross line Detection, Intrusion Detection, Stationary Object Alert, Pedestrian Detection, Face Detection, Cross Counting
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Compatibility: Open compatibility, API, Cortex Plug&Play
- Network Interface: RJ45 10M / 100M Ethernet Interface
- Illumination: 40pcs (DragonFire® SMD) LEDs Stealth Infrared Cover
- IR Range: Up to 145 feet (45m)
- ePTZ: Digital Pan Tilt Zoom
- SD storage: Yes, Micro SD
- Alarm Trigger: Yes, Screw Terminal
- Audio: Yes
- Video Output: Yes
- Reset System: Hardware reset button and software
- PoE: Yes, IEEE 802.3af / IEEE 802.3at
- Casing: Metal housing IP66 Waterproof
- Power Supply: DC 12V/POE
- Storage Temperature: -30~+60°C (-22~+140°F)
- Operating Temperature: -30~+55°C (-22~+131°F)
- Dimension: Ø135.4 X 127.7mm (Ø5.33 X 5 inches)
- Weight: Approximately 1.59 lbs (720g)
