H.265 / H264 | 5MP | Network IP | PoE | DragonFire® LEDs

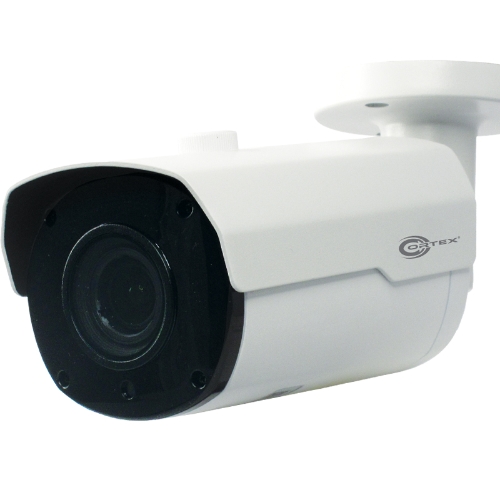

With Excellent image quality and advanced features, the Cortex® BV Medallion Series network bullet 5MP cameras are ideal for everyday commercial use but robust enough for high demand projects. This model is equipped with on-board SD card recording for edge storage which also allows for 3G / 4G solar panel based remote sights. A full suite of intelligent analytics are incorporated and truly increases the value of this already impressive network camera.
One lock auto focus technology delivers reliable focusing in extreme conditions and prevents loss of image clarity when switching between day and night scenes. The main benefit of auto focus is ease of use but this is amplified with the dependable one-lock technology that takes advantage focus shift corrected lenses and does not require refocusing after the IR filters are snapped on. This 5MP IP camera delivers superior performance in low light thanks to its Starlight CMOS sensor and the low light lens. The Starlight technology allows this network camera to see impressive color with a minimal amount of light and increases shutter speeds to reduce motion distortion. Dynamic noise reduction takes care of the few artifacts generated by application and gain.
The Cortex® IP systems are open compatibility third party with plug-and-play with Medallion NVRs and DVRs
What is the best 5MP IP camera? With all of the features listed and a complete set of extra unique features, this Cortex IP model is the best for many applications!
Make sure test this 5MP camera online or at a local showroom.
Main Features
- Premium Components
- 5MP 2592(H) × 1944(V) Resolution
- 1/2.9" Progressive CMOS 6.82M pixels
- 2.8 ~ 12 (Motorized) mm Lens: H.FOV: 92 ~ 28° Auto Focus
- 40pcs (DragonFire® SMD) LEDs Stealth Infrared Cover
- H.265 / H.264 Video Compression
- Premium Components
- Auto switching infrared-cut filter (OSD on/off)
- Multiple adjustable Video Streaming
- IEEE 802.3af / IEEE 802.3at | PoE
- IP66 Waterproof Metal Housing Casing
- IR Range: Up to 145 feet (45m)
- Resolution: 5MP 2592(H) × 1944(V) camera
- Image Sensor: 1/2.9" Progressive CMOS 6.82M pixels
- 5MP camera models feature advanced functions line intelligent detection
- Min. Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
- Shutter Time: Auto/Manual 1/5 ~ 1/20000s
- Shutter Controls: Active Shutter Controls
- Lens: 2.8 ~ 12 (Motorized) mm H.FOV: 92 ~ 28°
- F-Stop: F 1.6 ~ 2.9 ±5%
- Day&Night: Auto switching infrared-cut filter (OSD on/off)
- WDR: Digital wide dynamic range
- Video Compression: H.265 / H.264
- Video Bit Rate: 8Kbps ~ 8Mbps
- Video Streaming: 3 Individually Adjustable Streams
- Frame Rate:
- Mainstream: Up to 15fps, 5MP (2592×1944),4MP(2592x1520) ,3MP(2048x1520),1080P(1920x1080),
960P(1280x960), 720P(1280x720)
- Substeam: 720P(1280x720),VGA(640x480),QVGA(320x240)
- Mobilestream: VGA(640x480), QVGA（320x240）
- Image Settings: Image rotate, Saturation, Contrast, Hue, Brightness, Sharpness
- BLC: Supported
- ROI: Supported
- Privacy Mask: Supported
- AI Analytics:
- Cross line Detection, Intrusion Detection, Stationary Object Alert, Pedestrian Detection, Face Detection, Cross Counting
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Compatibility: Open compatibility, API, Cortex Plug&Play
- Network Interface: RJ45 10M / 100M Ethernet Interface
- Illumination: 40pcs (DragonFire® SMD) LEDs Stealth Infrared Cover
- IR Range: Up to 145 feet (45m)
- ePTZ: Digital Pan Tilt Zoom
- SD Card: Internal
- Alarm Trigger: Yes, Screw Terminal
- Audio: Yes
- Video Output: Yes
- Reset System: Hardware reset button and software
- PoE: Yes, IEEE 802.3af / IEEE 802.3at
- Casing: Metal housing IP66 Waterproof
- Power Supply: DC 12V / POE
- Consumption: ≤ 8W
- Storage Temperature: -30~+60°C (-22~+140°F)
- Operating Temperature: -30~+55°C (-22~+131°F)
- Dimension: 84 x 241 mm (3.3 x 9.48 inches)
- Weight: Approximately 1.77 lbs (805g)
