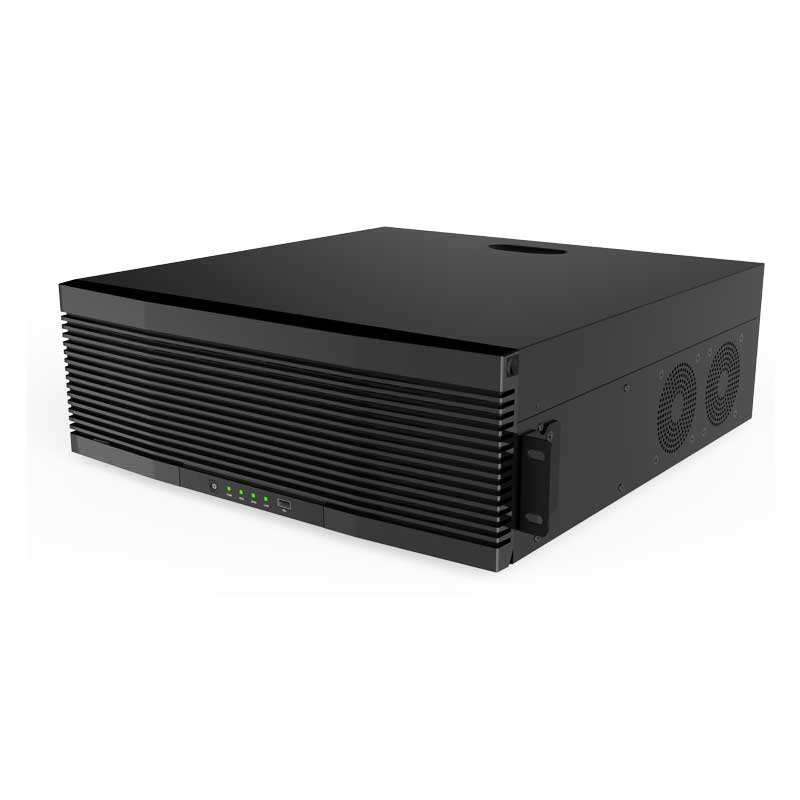

H.265 | 8MP (4K) | IP Auto Detect | 32 PoE NVR
The best features on this 64 Port NVR are 32 PoE ports and plenty of internal storage to grow and keep adding cameras. Designed for commercial and industrial applications, this Medallion NVR from Cortex has Live Playback and 8 SATA HDD bays each HDD up to 8TB. Its signature IP user GUI is the same across the entire line of Medallion NVRs which helps in expansion projects.The open compatibility protocols helps this unit integrate with many brands of IP cameras.
Main Features
- 4K 64 Channel / 32ch PoE NVR
- Intelligent Analytics Setup
- Quick QR Code Plug and Play
- Multiplex Functionality
- Cortex® 4K in and 4K out
- E-sata port
- Modern Intuitive GUI
- 64 IP Channels
- Simultaneous HDMI and VGA Output
- NVR from Medallion Series
- Live / Playback
- Ethernet: RJ-45 port (100/1000M）
- Simultaneous HDMI and VGA Output
- Digital Zoom
- Cortex panoramic immersive technology support for Medallion Fisheye models
- Video Encoding
- Remote View Setup
- Modern Intuitive GUI
- Panoramic Dewarping Support
- Intelligent Analytics Setup
- Internal HDD: 8 SATA HDDs
- iOS and Android using CortexView app
- PTZ Support
- VIDEO *
- Resolution: 12MP, 8MP ,5MP, 3MP , 2MP (1080P) ,1.3MP (960P),
1.0MP (720P)
- RECORDING BANDWIDTH*
- IP-Recording Bandwidth
(Maximum input Bandwidth):640Mbps
- IP-Recording Bandwidth
(Maximum output Bandwidth):640Mbps
- Video System: NTSC / PAL
- Operation System: Linux (embedded)
- IP Video Input: 16ch PoE
- LIVE / PLAYBACK*
- Compression: Audio: G.711A;G.711U / Video : H.264/H.264+/H.265/H.265+
- Frame rate (speed):
- 4K:240fps
- 4MP:480fps
- 2MP:960fps
- Event: MD (Sensitivity Level 1~8) , Video loss ,
Beep, Email, Push notification to Mobile APP
- Playback function: Fast forward / backward (2x, 4x, 8x,16x),Slow forward (1/2x, 1/4x, 1/8x,1/16x)
- Multiplex Operation{} live display - record - playback - backup and
network
- Feature: 1 / 4 / 6 / 9 / 12 / 16 / 20 / 25 / 32 / 64 / S.E.Q
- Fisheye: Use WEB, VMS, CORTEX iQ, local GUI
- RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
- UI / MONITORING *
- WEB: IE10/11,Safari V12.1 above ,Firefox V.52
above, Google chrome V.57 above, Edge V.79
above
- Push notification: Yes
- Mobile viewer: CORTEX IQ
- Ai Smart Features: Face Recognition (FR) Human&Vehicle
Detection (PD&VD) Perimeter Intrusion
Detection(PID)
Line Crossing Detection(LCD) Cross Counting
(CC)Stationary Object Detection (SOD)
Heat Map(HM)Crowd Density Detection (CD)
Queue Lenght Detection (QD) license Plate
Detection (LPD) Rare Sound Detection (RSD)
- INTEREFACE*
- P/W Reset: Factory Reset : Press 10 seconds
- *CONNECTIONS*
- Ethernet: 2 x RJ45 10/100/1000 Base-T
- POE: N/A
- USB:USB 2.0 x1 (front, USB 3.0 x 2 (rear)
- Audio output: 1CH out put (RCA)
- E-sata: 1
- HDD: 16 SATA HDD, up to 18TB each
- Line in: N/A
- RS232 / RS485: 1 x RJ45 / yes
- Alarm input/output: 16 in / 4 out
- MONITORS*
- HDMI: 1(1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080,
2560x1440, 3840x2160/EDID)
- VGA: 1(1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 )
- *GENERAL*
- OSD Language: English French Spanish Portugues German Italian Greek
Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean
Japanese Thai Hindi Romanian Dutch Polish
- *ELECTRICAL*
- Input Voltage/Current: ATX 250W
- Power consumption(excluding hard disk): 8W
- ENVIRONMENTAL*
- Working Temperature: -10°C~+50°C (14°F ~ 122°F)
- Working Humidity Less than 90%RH
- MECHANICAL DESIGN*
- Dimension ( W x D x H ): 440 x 460 x 149mm (17.3 x 18.1 x 5.8 inches)
