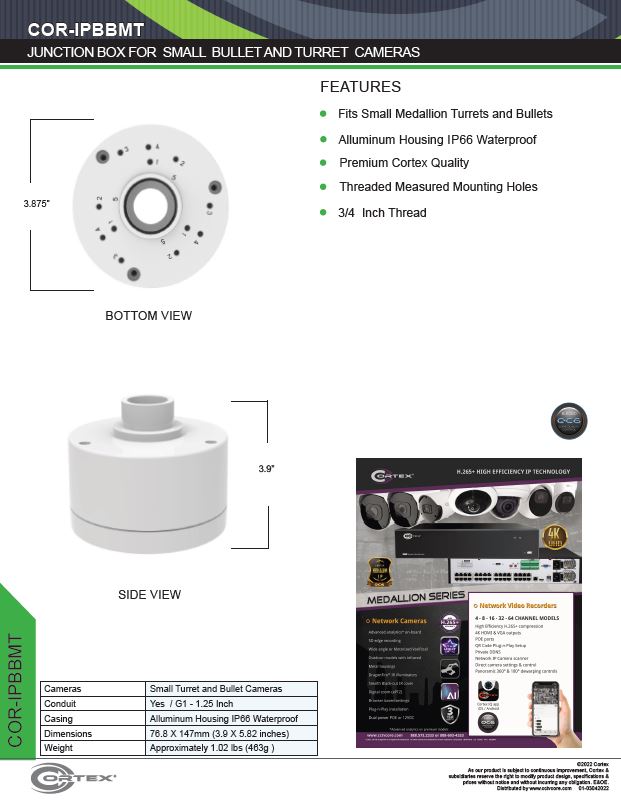

Made of high quality aluminum with a baked-on white finish, this electrical junction back-box is large enough to hold large cameras and heavy camera models. Designed specifically for all Cortex bullet cameras, domes cameras, and turret domes cameras including the Medallion series. This camera junction box to be used with Wall bracket and Pendant bracket.
A rubber grommet seal is provided.
Main Features
- Premium Cortex Quality Junction box
- Designed for Medallion Series cameras
- Easy wire management containment area
- Storage for adapters, baluns or bulky connectors
- Keep rain, dust and dirt from cable connections
- Can provide additional obstruction prevention
- Threaded Mounting Holes
- Aluminum Housing IP66 Waterproof
- Fits Small Medallion IP Domes and Bullets
- 3/4 Inch Thread
- Designed for wall and ceiling mount brackets
- Ceiling or wall mount
- Cameras small Domes and Bullet Cameras
- Can be used for network cameras or HD cameras
- For use with Ceiling or Wall mount
- Conduit Yes / G1 - 1.25 inch
- Conduit holes on top and side
- Includes plugs
- Casing Aluminum Housing IP66 Waterproof
- Dimensions 3.32 X 147mm (2.32 X 5.82 inches)
- Standard conduit fittings for USA markets
- Rubber seal
- 3/4 Inch Thread
- Threaded Mounting Holes
- Corrosion resistant materials
- Aluminum Housing IP66 Waterproof
